Valves and fittings for PVC-C pipes

Developed in 1958 by the company BF Goodrich today LUBRIZOL, PVC-C (superchlorinated polyvinyl chloride) is obtained through the process of chlorination of the resin in suspension of PVC. During the transformation, in the molecular chain of PVC, hydrogen atoms are replaced alternately with chlorine atoms. Through this transformation a resin is obtained which guarantees excellent performance in terms of thermal stability, chemical and mechanical resistance up to temperatures of 100 °C.

In 1986 FIP was the first European company to produce an integrated system of valves, fittings and pipes called TemperFIP100®. The result is a complete system of products for industrial plant engineering. Today the TemperFIP line, thanks to the twenty-year collaboration with the company LUBRIZOL EUROPE, uses for the production of PVC-C pipes, fittings and valves made by extrusion and injection, CORZAN™ PVC-C resins, specifically formulated for industrial applications.

Characteristics of PVC-C

PVC-C resins also offer complete compatibility in the transport of water to be made potable, demineralised water and hot thermal waters. The TemperFIP100® PVC-C system represents one of the most economically viable solutions in the field of thermoplastic and metallic materials to solve the problems encountered in process and service lines in the industrial sector for the transport of hot corrosive fluids and in the distribution of domestic hot and cold water. The fundamental reasons for this preference are to be attributed to the peculiar chemical-physical characteristics of PVC-C, among which those listed below can be mentioned.

High chemical resistance

The use of CORZAN™ resins, obtained from homopolymer PVC chlorination processes, ensures high chemical resistance, specifically against strong inorganic acids, organic bases, saline and alkaline solutions and paraffinic hydrocarbons. It is not recommended for use in the transport of polar organic compounds including various types of chlorinated and aromatic solvents. Inertia to electrochemical corrosion ensures high reliability in the transport of domestic hot water in conventional and solar panel systems.

Excellent thermal and mechanical properties

TemperFIP100® PVC-C finds its typical use in the temperature range between 20°C and 85°C with very low thermal expansion coefficients guaranteeing excellent mechanical resistance performance, and the suitability to withstand operating pressures in the order of 10 -16 bar at 20°C. The remarkable thermal stability (VICAT according to EN ISO 15493) associated with an excellent creep behavior (circumferential breaking load according to ASTM D 2837 equal to 1000 PSI 82 °C, 100,000 hours), allow its use up to about 95 °C for particular uses and performances. The reduced coefficient of thermal conductivity (l = 0.16 W/m °C according to ASTM C177) guarantees the virtual elimination of condensation problems and limited heat loss in the transport of hot fluids.

Physical properties PVC-C

PVC-C resins are characterized by low oxygen permeability and low water absorption (0.07% at 23 °C according to ASTM D 570). The physical properties of the material guarantee a high resistance to aging and to the aggression of atmospheric agents (UV radiation) thanks to the presence of titanium dioxide in the compound.

Fire resistant

The PVC-C resins guarantee exceptional fire resistance, the flame ignites at 482 °C and persists only in extreme conditions: if the oxygen concentration is 3 times higher than the atmospheric one or only in the presence of a flame coming from an external source. CORZAN™ PVC-C resins are classified VO, 5VB and 5VA according to UL94.

PVC-C valves, PVC-C pipe and PVC-C fittings: a versatile and complete system

Our CORZAN™ resin piping, fittings and valves system has been chosen in multi-million pound projects for conveying chemicals needed for wastewater treatment and is ideal for all those applications involving the use of corrosive fluids . It is a quick solution to install and with a long operational life and offers, like all our products, the guarantee of safe and quality joints.

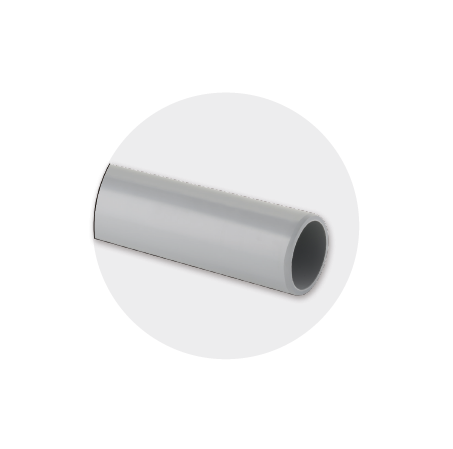

Immagine del tubo a pressione ISO-UNI TemperFIP100® in PVC-C

ISO-UNI pipe in PVC-C

Pressure tube TemperFIP100®

Pressure pipes for joining system by cold chemical welding (gluing) through the use of a suitable glue (TemperGLUE WELD-ON) and primer-detergent.

Immagine dei raccordi ISO-UNI per incollaggio serie metrica in PVC-C

ISO-UNI fittings in PVC-C

Metric series solvent weld fittings.
Series of fittings intended for the conveyance of fluids under pressure with a joining system by cold chemical welding (gluing) through the use of a suitable glue (TemperGLUE WELDON) and primer-detergent.

ISO-BSP fittings in PVC-C

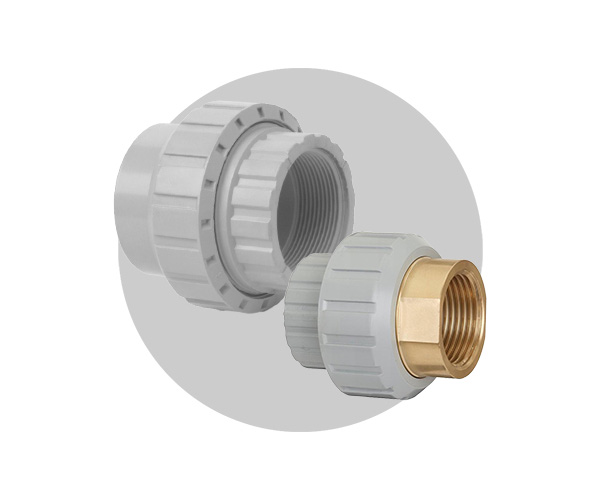

TemperFIP100® transition fittings.

Series of fittings intended for the conveyance of fluids under pressure with a jointing system by threading and cold chemical welding (gluing) through the use of a suitable glue (TemperGLUE WELD-ON) and primer-detergent.

Immagine di raccordi TemperFIP100 di passaggio ISO-BSP in PVC-C

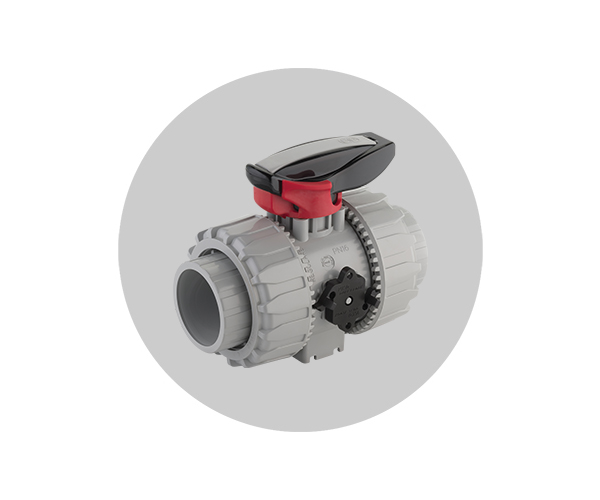

Immagine della valvola a sfera a 2 vie VKD DUAL BLOCK in PVC-C

VKD Dual Block - PVC-C valve

DUAL BLOCK® 2-way ball valve.

FIP has developed a VKD DUAL BLOCK® type ball valve to introduce a high reference standard in the design of thermoplastic valves. VKD is a radially disassembled collet ball valve that meets the most stringent requirements required in industrial applications.

TKD Dual Block - PVC-C valve

DUAL BLOCK® 3-way ball valve.

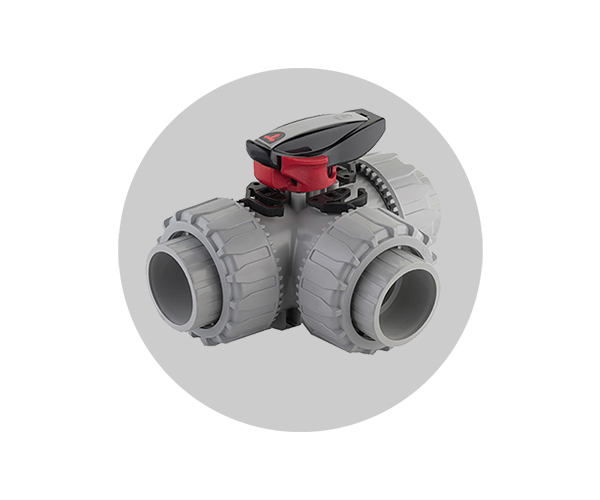

FIP has developed a TKD DUAL BLOCK® type ball valve to introduce a high reference standard in the design of thermoplastic valves. TKD is a radially disassembled mixing and switching ball valve that meets the most stringent requirements required in industrial applications.

Immagine della valvola a sfera a 3 vie TKD DUAL BLOCK in PVC-C
Immagine della valvola a sfera a 2 vie VXE Easyfit in PVC-C

VXE Easyfit - PVC-C valve

Easyfit 2-way ball valve.

FIP and Giugiaro Design have designed and developed VXE Easyfit, the innovative radial disassembly ball valve with ring nut tightening adjustment that allows simple and safe installation for reliable service over time. This valve is also equipped with the customized Labeling System.

SSE Easyfit - PVC-C valve

Spring-loaded Easyfit lock nut check valve.

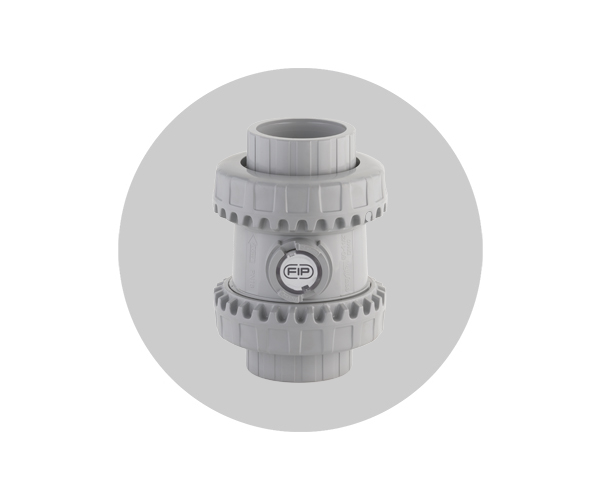

The line of SSE Easyfit check valves with spring poppet developed with Giugiaro Design stands out for the innovative installation method which guarantees reliable service over time. This valve is also equipped with the customized Labeling System.

Immagine della valvola di ritegno bighiera SSE Easyfit a molla in PVC-C

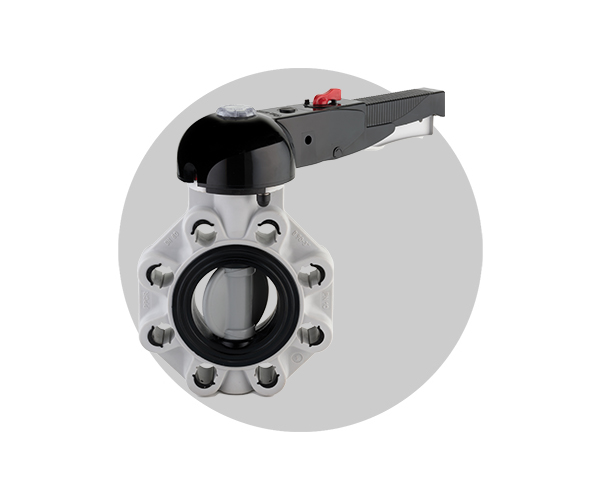

Immagine della valvola a farfalla FK in PVC-C

FK - PVC-C valve

Butterfly valve.

The FK is a shut-off and regulation butterfly valve, with structural characteristics that are ideal for use in industrial applications that require high performance and reliability over time. This valve is also equipped with the customized Labeling System.

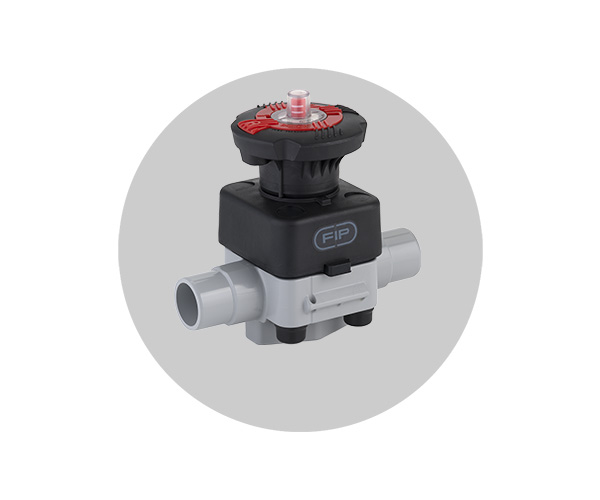

Immagine della valvola a membrana a 2 vie DK DIALOCK in PVC-C

DK Dialock - PVC-C valve

DIALOCK® 2-way diaphragm valve.

The DK DIALOCK® diaphragm valve is ideal for regulating and shutting off abrasive fluids or fluids with impurities. The new internal geometry of the body significantly increases the flow coefficient, reduces pressure drops and allows accurate adjustment over the entire poppet stroke. The DK has reduced dimensions and weight. The innovative handwheel is equipped with a patented mechanism for locking the manoeuvre, immediate and ergonomic, which allows you to lock any adjustment position reached.

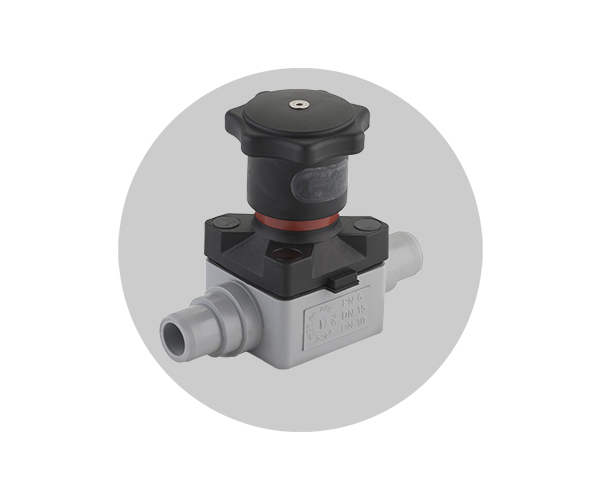

CM - PVC-C valve

Compact diaphragm valve.

The CM is a manually operated diaphragm valve of reduced dimensions and particularly compact structure, ideal for use in confined spaces.

Immagine della valvola a membrana compatta CM in PVC-C

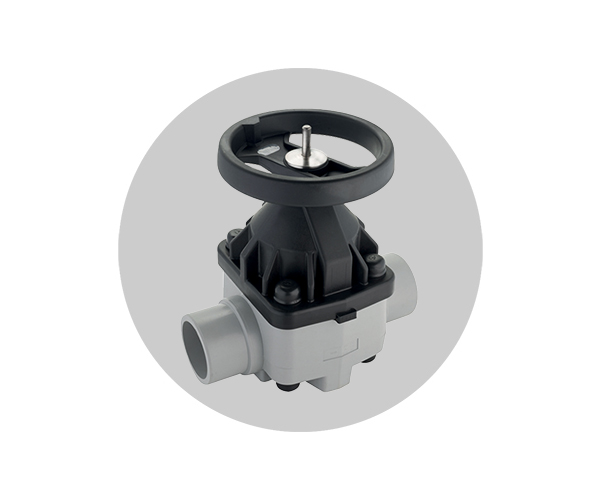

Immagine della valvola a membrana VM in PVC-C

VM - PVC-C valve

Diaphragm valve.

The VM is particularly suitable for the regulation and interception of abrasive fluids or fluids containing impurities. The handwheel control and the diaphragm seal allow precise and effective regulation and reduce the risk of water hammer to a minimum.

Do you need to make a flanged connection?

Aliaxis has designed the innovative 3+ Backing Ring which, thanks to its optimized design, combines a unique lightness with exceptional mechanical strength, ensuring  a simple, safe and reliable installation.

range nuove flange per tubi 3+ a marchio fip

Are you interested in the implemented versions?

Beside the manually operated versions, Aliaxis offers the actuated versions which are made using actuators compliant with current regulations and selected by FIP on the basis of their quality and reliability requirements. The efficiency of these valves, tested according to the company's quality standards, is guaranteed by the expertise and know-how that FIP dedicates to the creation of its products.

Immagine delle valvole attuate elettricamente e pneumaticamente a marchio FIP

Normative requirements

The production of the TemperFIP100® PVC-C lines is carried out following the highest quality standards and in full compliance with the environmental constraints imposed by the laws in force and in accordance with the ISO 14001 standard. All products are manufactured in accordance with the quality assurance system according to the ISO 9001 standard.

  • ANSI B16.5 Pipe Flanges and Flange Fittings-NPS 1/2 to NPS 24 mm/inch.
  • ASTM D1784 cl. 23548B Rigid PVC and PVC-C compound (for industrial applications).
  • ASTM F437 PVC-C Threaded Fittings, Sch. 80. l ASTM F439 PVC-C Pipe Fittings.
  • ASTM F441 PVC-C pipe, sch. 40 and 80.
  • BS 10 Specification for flanges and bolts for pipes, valves and fittings.
  • BS 1560 Flanges for pipes, valves and fittings (design according to class). Flanges in steel, cast iron and copper alloys. Specification for steel flanges.
  • BS 4504 Flanges for pipes, valves and fittings (design to PN).
  • DIN 2501 Flanges, dimensions.
  • DIN 2999 Thread for pipes and fittings.
  • DIN 8063 Dimensions of PVC-C fittings.
  • DIN 8079-8080 PVC-C pipes, dimensions.
  • DIN 16962 PVC-C fittings for socket and butt welding, dimensions.
  • DIN 16963 Pipe joints and piping parts for pressure fluid transport in HDPE.
  • DIN 16963 Pipe joints and piping parts for pressure fluid transport in HDPE.
  • EN 558-1 Industrial valves - External boundary dimensions of metallic valves for use in flanged piping systems - Part 1: Design according to PN.
  • EN 1092-1 Flanges and their joints - Circular flanges for pipes, valve fittings and accessories - Part 1: Steel flanges, design according to PN.
  • EN ISO 15493 PVC-C component systems (pipes, fittings and valves) for industrial applications.
  • ISO 228-1 PVC-C fittings with threaded ends.
  • ISO 5211 Couplings for fractional turn actuators.
  • ISO 7005-1 Metal flanges; part 1: steel flanges.
  • JIS B 2220 Metal Pipe Flanges.
  • UNI 11242 Jointing by gluing of PVC-C pipes, fittings and valves

Approvals and quality marks

ABS The TemperFIP100® PVC-C system is recognized as suitable for the conveyance, treatment of sanitary and conditioning waters on board ships and other units classified by the American Bureau of Shipping (ABS).

ACS The TemperFIP100® PVC-C system is certified suitable for coming into contact with water intended for human consumption according to the Attestation de conformité sanitaire (ACS).

Bureau Veritas The TemperFIP100® PVC-C system is recognized as suitable for the conveyance and treatment of sanitary and conditioning water on board ships and other units classified by the Bureau Veritas - Marine Division.

DNV-GL The TemperFIP100® PVC-C system is recognized as suitable for the conveyance and treatment of sanitary and conditioning waters on board ships and other units classified by DNV-GL.

EAC The TemperFIP100® PVC-C system is EAC certified in accordance with the Russian regulations for Safety, Hygiene and Quality.

Lloyd's Register The TemperFIP100® PVC-C system is recognized as suitable for the conveyance and treatment of sanitary and conditioning water on board ships and other units classified by Lloyd's Register.

KR - Korean Register The TemperFIP100® PVC-C system is recognized as suitable for the conveyance and treatment of sanitary and conditioning waters on board ships and other units classified by KR (Korean Register).

NSF (National Sanitation Foundation USA) FIP ball valves in PVC-C are listed according to NSF/ANSI Standard 61 - Drinking Water System Components - Health Effects.

TA-Luft TemperFIP100® PVC-C valves have been tested and certified according to “TA-Luft” by MPA Stuttgart in accordance with the Technical Instruction on Air Quality Control TA-Luft / VDI 2440.

UKR SEPRO TemperFIP100® PVC-C valves and fittings are certified in accordance with Ukrainian regulations for Safety, Hygiene and Quality.

WRAS The PVC-C TemperFIP100® system is recognized by WRAS (Water Regulation Advisory Scheme - UK).

RMRS The TemperFIP100® PVC-C system is recognized as suitable for the conveyance and treatment of sanitary and conditioning waters on board ships and other units classified by the Russian Maritime Register of Shipping.

Download

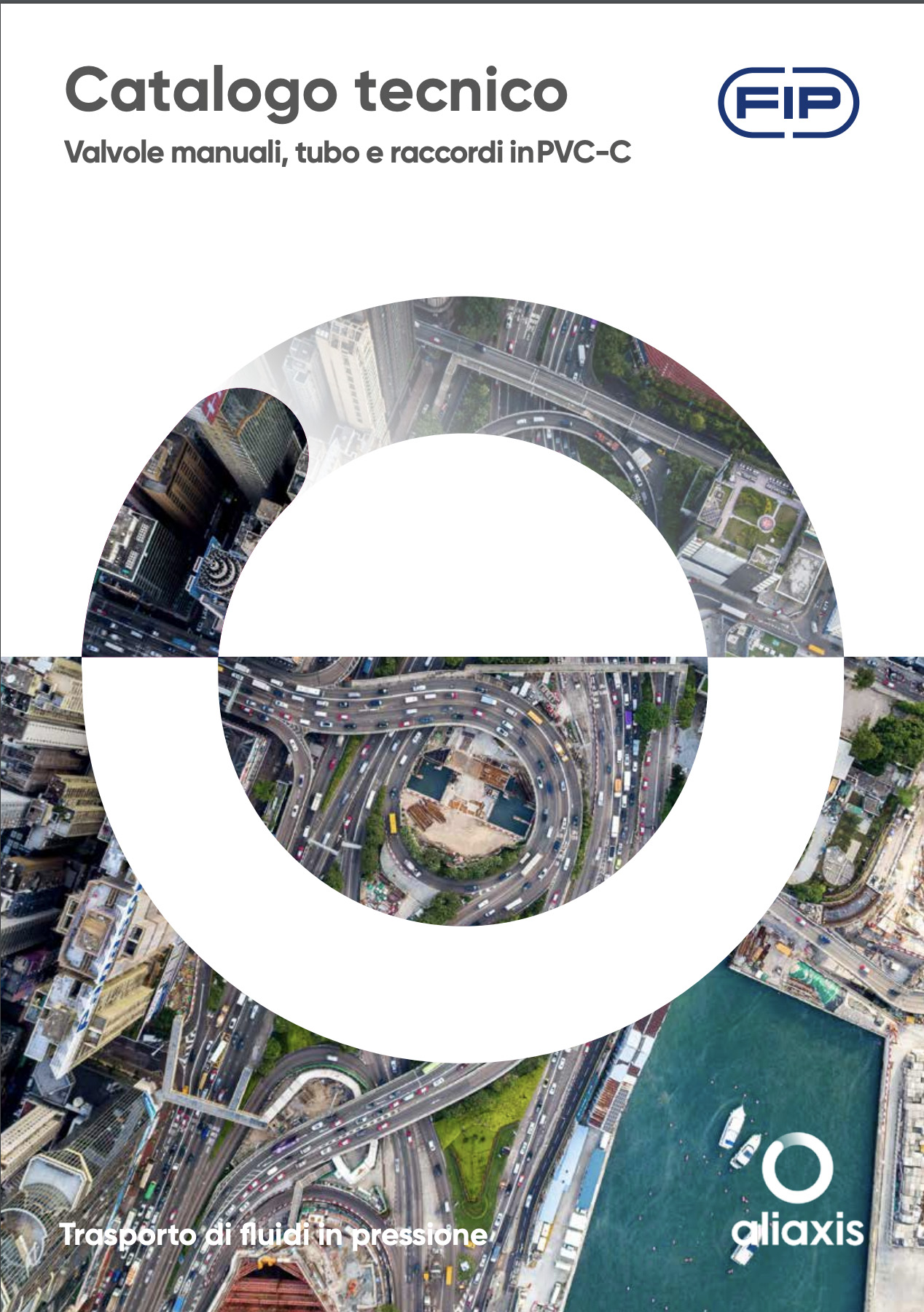

PVC-C systems technical catalogue
