EASYFIT 2-WAY BALL VALVE

FIP and Giugiaro Design have designed and developed VXE Easyfit, the innovative radial disassembly ball valve with ring nut tightening adjustment that allows simple and safe installation for reliable service over time.

FEATURES COMMON TO ALL VXEs:

Easyfit patented system
Jointing system for gluing and threading
Compatibility of the valve material (PVC-U and PVC-C) and of the elastomer sealing elements (EPDM or FKM), with the conveyance of water, drinking water and other food substances according to the regulations in force
Easy radial disassembly from the system and consequent rapid replacement of O-Rings and ball seals without the use of any tools
Radial dismantling (True Union) PN16 valve body made by injection molding in PVC-U or PVC-C and compliant with the European Directive 2014/68/EU (PED) for pressure equipment. Test requirements according to ISO 9393
Possibility of disassembling the downstream piping with the valve in the closed position
Floating full bore ball with high surface finish made in CNC machining centers to obtain precise dimensional tolerances and high surface finish
Stem with high surface finish with double O-Ring seal

Manual valves

Manual valvesSPECIFIC CHARACTERISTICS VXE MANUAL DN 10:50:

Patented Easyfit system: innovative mechanism based on the kinematics of the bevel gears which controls the rotation of the valve nuts during installation
Complete interchangeability with previous VX Ergo series models
Ergonomic bi-positionable Easyfit multifunction handle with control for adjusting the tightening of the ring nuts and usable as a key for adjusting the support of the ball seat gaskets. The use of the handle is particularly suitable for maintenance operations where one operates in limited spaces and difficult to access
Personalization system Labeling System: LCE module integrated into the handle consisting of a transparent protective cap and label holder plate that can be customized using the LSE set (available as an accessory). The possibility of customization allows you to identify the valve on the system according to specific needs
PTFE sealing system with locked support adjustable via the Easyfit multifunction handle or via the Easytorque adjustment kit (available as an accessory)
Stem with high surface finish with double o-ring seal made in CNC machining centers to obtain precise dimensional tolerances and greater reliability
Machined ball with high surface finish that guarantees excellent maneuverability and greater reliability

SPECIFIC CHARACTERISTICS VXE MANUAL DN 65:100:

Patented Easyfit system: innovative mechanism based on the quick release of the multifunction handle which allows you to rotate the ring nuts during valve installation and ball support adjustment
Innovative Easyfit quick release handle composed of a central hub firmly coupled to the stem and a birazza handle that can be released from the hub with a simple operation and used as a wrench for adjusting the ball seals and as a tightening tool of the ferrules thanks to the hooked insert which, adapting perfectly to their external profile, allows the handle to transform into a key for controlling the rotation of the ferrules themselves
Personalization system Labeling System: LCE module integrated in the hub consisting of a transparent protective cap and label holder plate that can be customized using the LSE set (available as an accessory). The possibility of customization allows you to identify the valve on the system according to specific needs
Locking of the maneuver both in closing and in opening by inserting a padlock

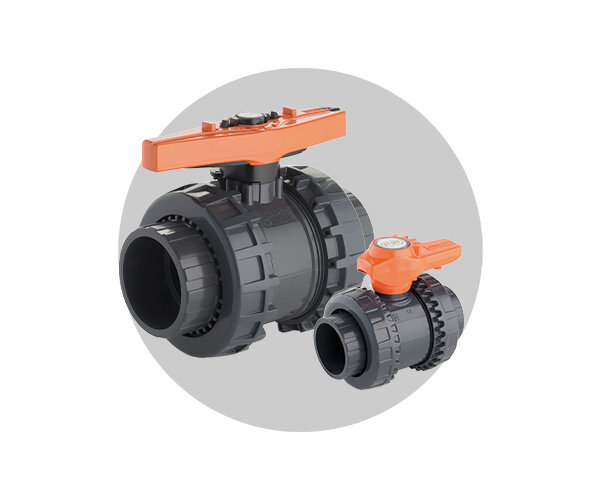

go to VXE DN 10:50 in PVC-U

go to VXE DN 65:100 in PVC-U

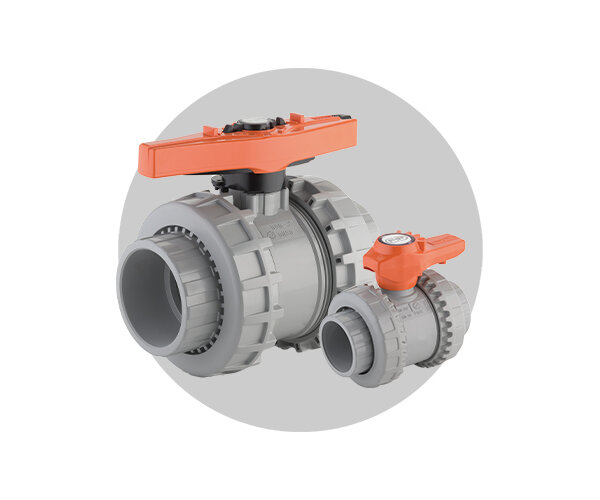

go to VXE DN 10:50 in PVC-C

go to VXE DN 65:100 in PVC-C

Valves actuated

VXE SPECIFIC CHARACTERISTICS IMPLEMENTED DN 65:100:

Patented Easyfit system: innovative mechanism based on the quick release of the multifunction handle which allows you to rotate the ring nuts during valve installation and ball support adjustment
Valve body with integrated anchoring structure for the special Power Quick module dedicated to the installation of accessories or pneumatic and electric actuators

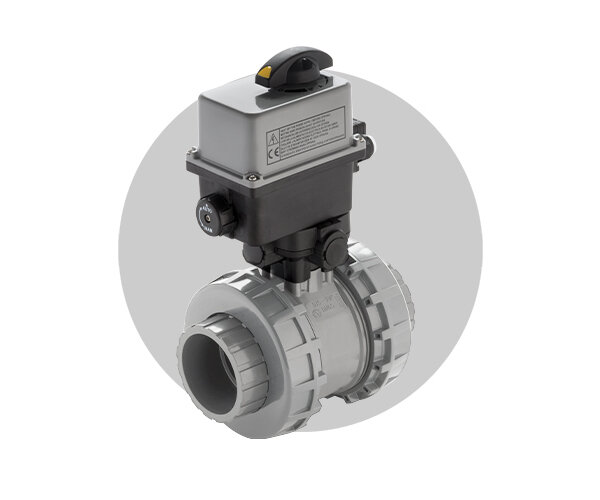

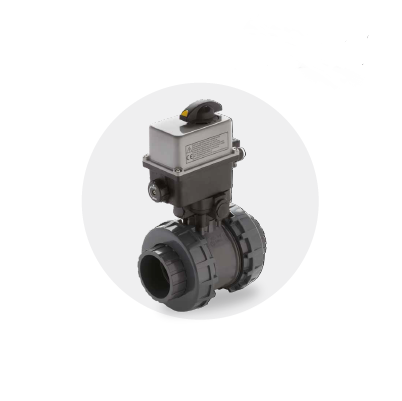

Electric actuator made on FIP specifications; with shells in plastic material and manual emergency control as standard. Available in voltages from 12 to 240V.

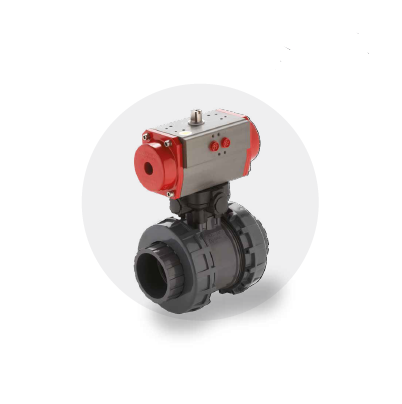

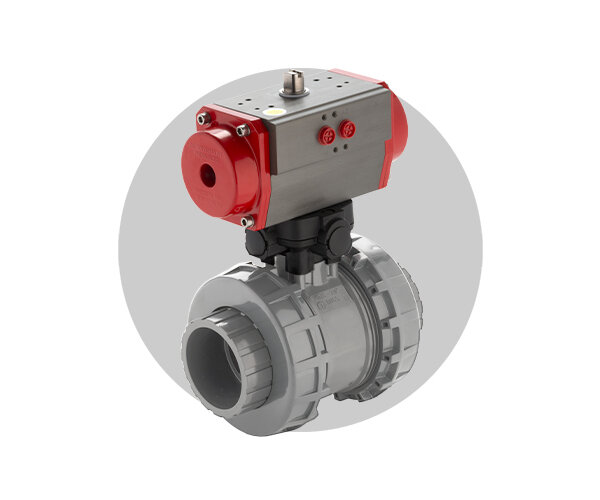

Rack & pinion type pneumatic actuator made to FIP specifications; fully protected against corrosion by atmospheric agents available in double acting (DA) or single acting version normally closed (NC) or normally open (NO)
Stem with high surface finish with double o-ring seal made in CNC machining centers to obtain precise dimensional tolerances and greater reliability
PowerQuick Easyfit module for pneumatic or electric actuation made entirely of highly robust and easy to install technopolymer.
