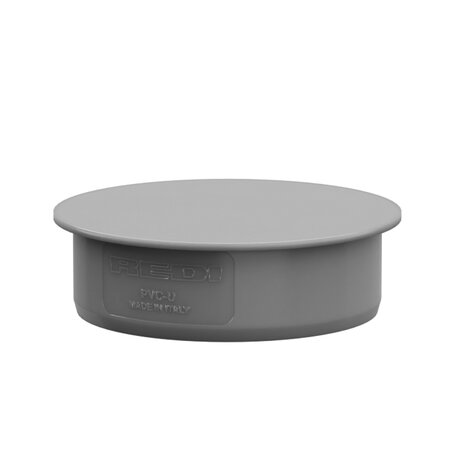

Socket plug
Pipes and fittings are made of PVC-U for non pressure underground drainage and sewage applications.
Application area code is “U” or “UD” where applicable.
Push-Fit PVC-U Fittings EN 1401
RAL 8023 Red - RAL 7037 Grey
Main features:
/pim/redi/images/Fognatura/066160E_8023.jpg

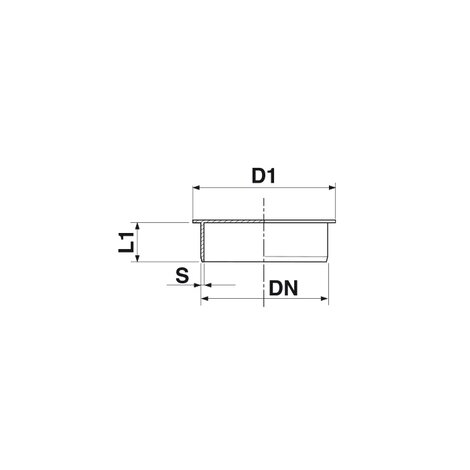

| Part no. | product.detail.attribute.mainFeatures | DN (mm) | D1 (mm) | S (mm) | L1 (mm) | RAL | Type |
|---|---|---|---|---|---|---|---|
| 0661102 | /pim/redi/images/Fognatura/066160E_8023.jpg | 110 | 126 | 3,2 | 38 | 7037 | - |
| 066110E | /pim/redi/images/Fognatura/066160E_8023.jpg | 110 | 126 | 3,2 | 38 | 8023 | - |
| 0661202 | /pim/redi/images/Fognatura/066160E_8023.jpg | 125 | 142 | 3,2 | 42 | 7037 | - |
| 066120E | /pim/redi/images/Fognatura/066160E_8023.jpg | 125 | 142 | 3,2 | 42 | 8023 | - |
| 0661602 | /pim/redi/images/Fognatura/066160E_8023.jpg | 160 | 180 | 4,0 | 49 | 7037 | - |
| 066160E | /pim/redi/images/Fognatura/066160E_8023.jpg | 160 | 180 | 4,0 | 49 | 8023 | - |
| 0662002 | /pim/redi/images/Fognatura/066160E_8023.jpg | 200 | 223 | 4,9 | 59 | 7037 | - |
| 066200E | /pim/redi/images/Fognatura/066160E_8023.jpg | 200 | 223 | 4,9 | 59 | 8023 | - |
| 0662502 | /pim/redi/images/Fognatura/066160E_8023.jpg | 250 | 282 | 6,2 | 90 | 7037 | - |
| 0662501 | /pim/redi/images/Fognatura/066160E_8023.jpg | 250 | 282 | 6,2 | 90 | 8023 | - |
| 0663002 | /pim/redi/images/Fognatura/066160E_8023.jpg | 315 | 350 | 7,7 | 93 | 7037 | - |
| 0663001 | /pim/redi/images/Fognatura/066160E_8023.jpg | 315 | 350 | 7,7 | 93 | 8023 | - |
| 06640M2 | /pim/redi/images/Fognatura/066160E_8023.jpg | 400 | 440 | 9,8 | 95 | 7037 | - |
| 06640M1 | /pim/redi/images/Fognatura/066160E_8023.jpg | 400 | 440 | 9,8 | 95 | 8023 | - |
| D665001 | /pim/redi/images/Fognatura/066160E_8023.jpg | 500 | 558 | 12,3 | 120 | 8023 | Fabricated |
