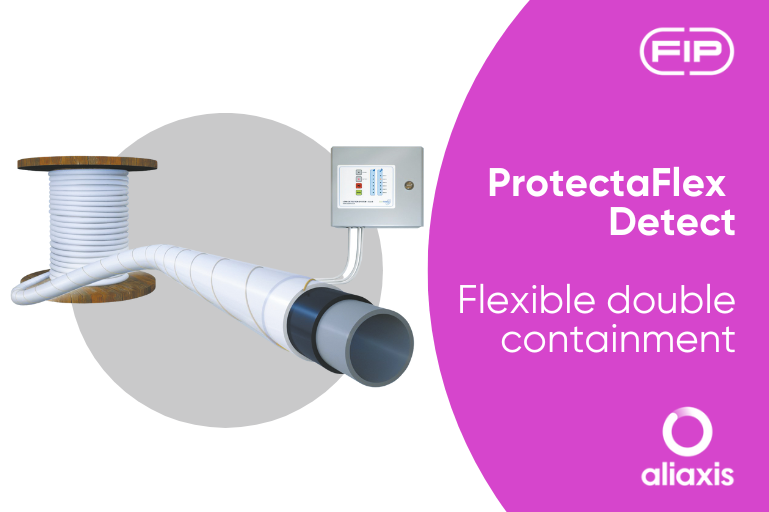

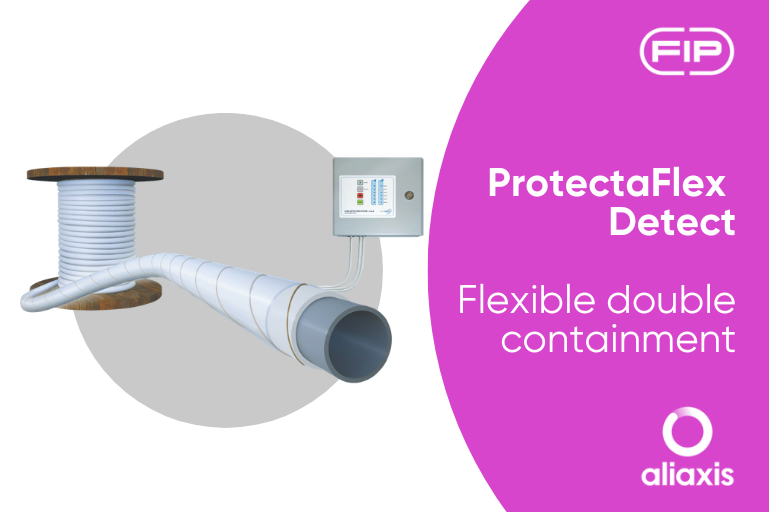

ProtectaFlex Detect is a next-generation flexible double-containment piping system, designed to ensure maximum safety in the transportation of chemical fluids.
This advanced system is ideal for the chemical industry and the treatment of industrial or municipal water, offering a comprehensive solution that integrates Industry 4.0.
Key features of ProtectaFlex Detect:
- Double containment: The primary pipe made of PVC, PE, or PTFE is enclosed in a second reinforced PU pipe, ensuring high pressure resistance.
- Immediate leak detection: Any fluid that penetrates the interstitial space is detected by the EcoLeak sensor, ensuring timely detection of any leaks.
- Versatile: Its flexibility allows the system to be adopted in various applications.
- Unmatched chemical resistance: With a wide choice of materials, the system offers exceptional chemical resistance and is suitable for diameters from Ø6 to Ø50.
- Optimal safety: ProtectaFlex Detect limits the risks of human, material, and environmental damage, ensuring a high level of reliability.
For standard applications:
For standard applications ProtectaFlex Detect system offers a primary coating of PVCR o PELD, with a nominal diameter ranging from DN 6 to 50. The outer sheath is made of transparent PU, offering optimal UV resistance. Additionally, the system is fire-rated according to UL94, V2, and HB standards, ensuring high safety. The system's operating temperature ranges from -20°C to +55°C, making it suitable for various operating conditions.
For Extreme conditions:
For extreme conditions, the ProtectaFlex Detect system offers a primary PTFE coating, with a nominal diameter ranging from DN 6 to 25. The outer sheath is made of transparent PU, offering optimal UV resistance. The system is designed to operate in a wide temperature range, from -70°C to +150°C, and can withstand burst pressures ranging from 15 to 40 bar, depending on the diameter.
ProtectaFlex Detect by Aliaxis combines pipe flexibility and double containment to ensure the safe transportation of fluids. Choosing Aliaxis solution means ensuring optimal safety and the effectiveness of complete ranges with reduced installation and maintenance costs.
For more information, visit the dedicated landing page and contact Giulia Lecchi, EMEA Product Manager, at +39 342 1821438 or via email at glecchi@aliaxis.com.
