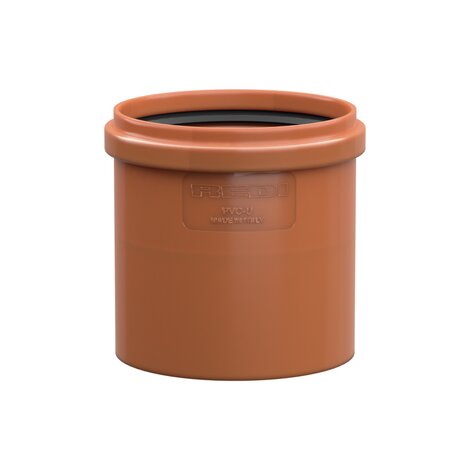

Single socket
Pipes and fittings are made of PVC-U for non pressure underground drainage and sewage applications.
Application area code is “U” or “UD” where applicable.
Push-Fit PVC-U Fittings EN 1401
Gaskets EN 681-1 DIN 4060
Note: Gasket Standard Lip Ring
RAL 8023 Red - RAL 7037 Grey

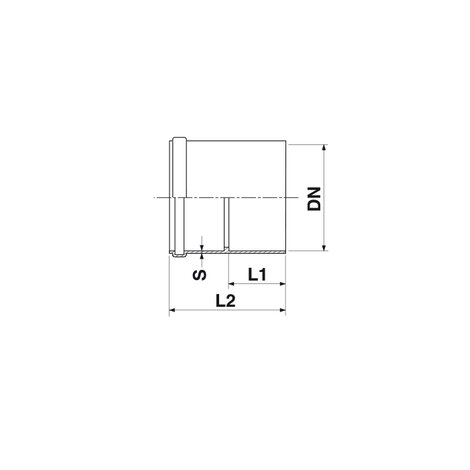

| Reference | DN (mm) | S (mm) | L1 (mm) | L2 (mm) | RAL | Gasket |
|---|---|---|---|---|---|---|
| 0631181 | 110 | 2,9 | 60 | 122 | 8023 | Standard |
| 0631182 | 110 | 2,9 | 60 | 122 | 8023 | Standard |
| 0631281 | 125 | 2,9 | 68 | 141 | 8023 | Standard |
| 0631681 | 160 | 3,6 | 75 | 154 | 8023 | Standard |
| 0632081 | 200 | 4,4 | 106 | 217 | 8023 | Standard |
| 0632581 | 250 | 5,5 | 123 | 254 | 8023 | Standard |
| 0633081 | 315 | 6,9 | 144 | 297 | 8023 | Standard |
