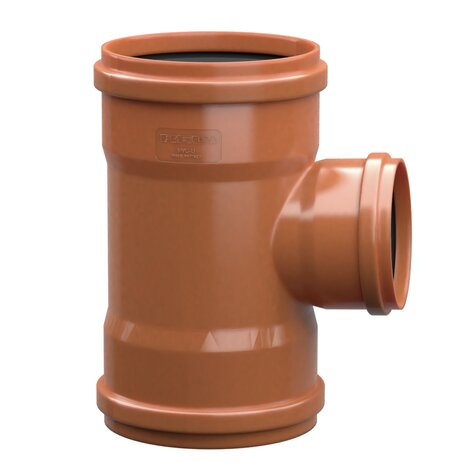

Reduced branch 87°30' T/S
Pipes and fittings are made of PVC-U for non pressure underground drainage and sewage applications. Application area code is “U” or “UD” where applicable.
Push-Fit PVC-U Fittings EN 1401
Gaskets EN 681-1 DIN 4060
RAL 8023 Red - RAL 7037 Grey
Main features:
/pim/redi/images/Fognatura/0451641_8023.jpg
| Part no. | product.detail.attribute.mainFeatures | DN (mm) | DN1 (mm) | S (mm) | S1 (mm) | Z1 (mm) | Z2 (mm) | Z3 (mm) | L1 (mm) | L3 (mm) | α | RAL | Gasket | Version | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0351741 | /pim/redi/images/Fognatura/0451641_8023.jpg | 160 | 110 | 4,0 | 3,2 | 70 | 75 | 95 | 72 | 56 | 87° 30' | 8023 | Bloccata/Fixed | - | - |
| 0463642 | /pim/redi/images/Fognatura/0451641_8023.jpg | 160 | 125 | 4,0 | 3,2 | 85 | 81 | 94 | 72 | 62 | 87° 30' | 7037 | Bloccata/Fixed | - | - |
| 0460141 | /pim/redi/images/Fognatura/0451641_8023.jpg | 200 | 110 | 4,9 | 3,2 | 108 | 110 | 120 | 86 | 60 | 87° 30' | 8023 | Bloccata/Fixed | - | - |
| 0460242 | /pim/redi/images/Fognatura/0451641_8023.jpg | 200 | 125 | 4,9 | 3,2 | 108 | 110 | 120 | 86 | 62 | 87° 30' | 7037 | Bloccata/Fixed | - | - |
| 0460642 | /pim/redi/images/Fognatura/0451641_8023.jpg | 200 | 160 | 4,9 | 4 | 108 | 110 | 132 | 86 | 74 | 87° 30' | 7037 | Bloccata/Fixed | - | - |
| 0460641 | /pim/redi/images/Fognatura/0451641_8023.jpg | 200 | 160 | 4,9 | 4 | 108 | 110 | 132 | 86 | 74 | 87° 30' | 8023 | Bloccata/Fixed | - | - |
| 1461242 | /pim/redi/images/Fognatura/0451641_8023.jpg | 250 | 125 | 6,2 | 3,2 | 100 | 100 | 132 | 103 | 130 | 87° 30' | 7037 | Bloccata/Fixed | - | - |
| 1461642 | /pim/redi/images/Fognatura/0451641_8023.jpg | 250 | 160 | 6,2 | 4 | 100 | 100 | 134 | 107 | 126 | 87° 30' | 7037 | Bloccata/Fixed | - | - |
| 1461651 | /pim/redi/images/Fognatura/0451641_8023.jpg | 250 | 160 | 6,2 | 4 | 100 | 100 | 134 | 107 | 126 | 87° 30' | 8023 | Standard | upon request | - |
| 1462051 | /pim/redi/images/Fognatura/0451641_8023.jpg | 250 | 200 | 6,2 | 4,9 | 100 | 143 | 136 | 113 | 120 | 87° 30' | 8023 | Standard | upon request | - |
| 1464141 | /pim/redi/images/Fognatura/0451641_8023.jpg | 315 | 110 | 7,7 | 3,2 | 150 | 150 | 176 | 116 | 56 | 87° 30' | 8023 | Bloccata/Fixed | upon request | - |
| 1464342 | /pim/redi/images/Fognatura/0451641_8023.jpg | 315 | 125 | 7,7 | 3,2 | 150 | 150 | 176 | 116 | 65 | 87° 30' | 7037 | Bloccata/Fixed | - | - |
| 1464242 | /pim/redi/images/Fognatura/0451641_8023.jpg | 315 | 160 | 7,7 | 4 | 150 | 150 | 180 | 116 | 73 | 87° 30' | 7037 | Bloccata/Fixed | - | - |
| 1464442 | /pim/redi/images/Fognatura/0451641_8023.jpg | 315 | 200 | 7,7 | 4,9 | 150 | 150 | 185 | 116 | 87 | 87° 30' | 7037 | Bloccata/Fixed | - | - |
| 1464451 | /pim/redi/images/Fognatura/0451641_8023.jpg | 315 | 200 | 7,7 | 4,9 | 150 | 150 | 185 | 116 | 87 | 87° 30' | 8023 | Standard | - | - |
| 1463342 | /pim/redi/images/Fognatura/0451641_8023.jpg | 400 | 125 | 9,8 | 3,2 | 192 | 192 | 240 | 145 | 65 | 87° 30' | 7037 | Bloccata/Fixed | upon request | Thermoformed |
| 1467741 | /pim/redi/images/Fognatura/0451641_8023.jpg | 400 | 200 | 9,8 | 4,9 | 192 | 192 | 250 | 145 | 95 | 87° 30' | 8023 | Bloccata/Fixed | - | Thermoformed |
| 1468842 | /pim/redi/images/Fognatura/0451641_8023.jpg | 400 | 250 | 9,8 | 6,2 | 227 | 227 | 270 | 145 | 105 | 87° 30' | 7037 | Bloccata/Fixed | - | Thermoformed |
| 1469942 | /pim/redi/images/Fognatura/0451641_8023.jpg | 400 | 315 | 9,8 | 7,7 | 227 | 227 | 260 | 145 | 125 | 87° 30' | 7037 | Bloccata/Fixed | - | Thermoformed |
