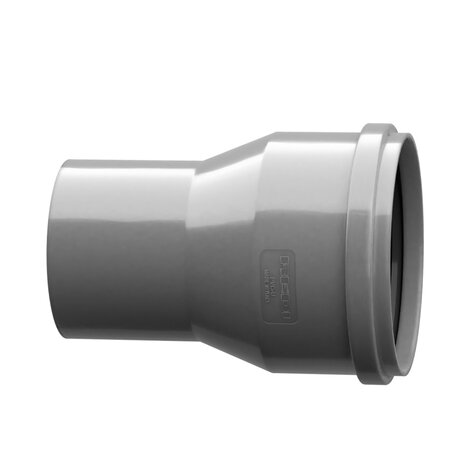

Clay/PVC adaptor
Pipes and fittings are made of PVC-U for non pressure underground drainage and sewage applications.
Application area code is “U” or “UD” where applicable.
Push-Fit PVC-U Fittings EN 1401
Gaskets EN 681-1 DIN 4060
Note: Gasket Standard Lip Ring
RAL 8023 Red - RAL 7037 Grey

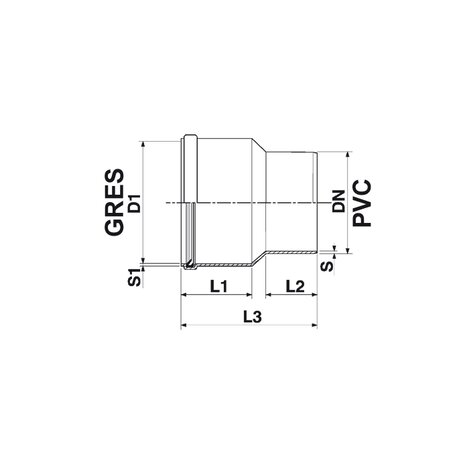

| Reference | DN (mm) | D1 (mm) | S (mm) | S1 (mm) | L1 (mm) | L2 (mm) | L3 (mm) | RAL | Gasket |
|---|---|---|---|---|---|---|---|---|---|
| 0621191 | 110 | 136 | 3,0 | 3,0 | 89 | 60 | 170 | 8023 | Standard |
| 0621192 | 110 | 136 | 3,0 | 3,0 | 89 | 60 | 170 | 7037 | Standard |
| 0621291 | 125 | 160 | 3,4 | 3,0 | 98 | 67 | 190 | 8023 | Standard |
| 0621292 | 125 | 160 | 3,4 | 3,0 | 98 | 67 | 190 | 7037 | Standard |
| 0621691 | 160 | 190 | 4,0 | 3,6 | 112 | 81 | 215 | 8023 | Standard |
| 0621692 | 160 | 190 | 4,0 | 3,6 | 112 | 81 | 215 | 7037 | Standard |
| 0622091 | 200 | 242 | 5,5 | 4,5 | 125 | 100 | 255 | 8023 | Standard |
