ADV

Threaded fittings - hose adaptors.

Hose adaptor with BSP threaded female end (R) and EPDM flat gasket.

Series of fittings for pipes conveying fluids under pressure with threaded joints.

Go back Data sheet

Immagine del portagomma con estremità R a bocchettone femmina filettato ADV

Disegno tecnico del raccordo filettato - portagomma ADV

Immagine del portagomma con estremità R a bocchettone femmina filettato ADV

Disegno tecnico del raccordo filettato - portagomma ADV

Reference	R x P[5:1] x P[5:2]	PN	H	L	g
ADV012012014	1/2” x 12 x 14	16	56	14	15
ADV034016018	3/4” x 16 x 18	16	60	11,5	24
ADV100020022	1” x 20 x 22	16	67	11	35
ADV114025027	1"1/4 x 25 x 27	16	81	14	55
ADV112030032	1”1/2 x 30 x 32	16	97	16	80
ADV200040042	2” x 40 x 42	16	104	18	140
ADV200050052	2” x 50 x 52	16	111	16	180
ADV214050052	2”1/4 x 50 x 52	16	111	17,5	200
ADV234060064	2”3/4 x 60 x 64	16	123	20	300

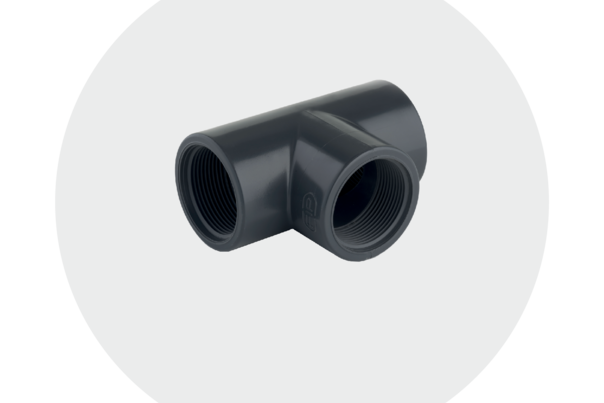

BSP FITTINGS PVC-U Technical Catalogue

3.5 MB, PDF

BSP FITTINGS PVC-U Technical Catalogue
