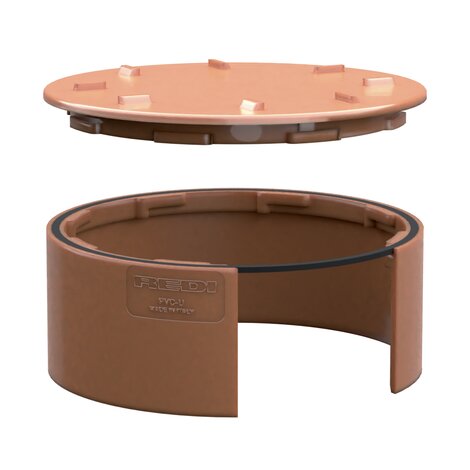

Access plug
Pipes and fittings are made of PVC-U for non pressure underground drainage and sewage applications. Application area code is “U” or “UD” where applicable.
Push-Fit PVC-U Fittings EN 1401
Gaskets EN 681-1 DIN 4060
Note: Gasket Standard Lip Ring
RAL 8023 Red - RAL 7037 Grey

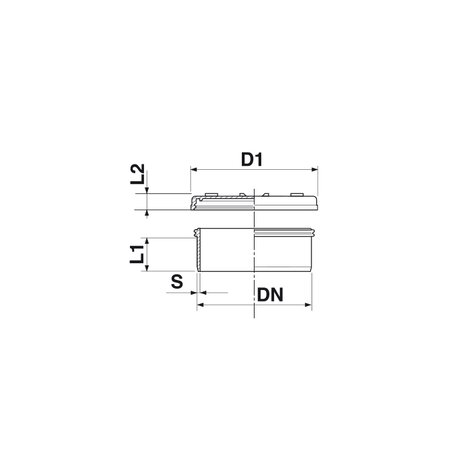

| Reference | DN (mm) | D1 (mm) | S (mm) | L1 (mm) | L2 (mm) | RAL | Type | Gasket |
|---|---|---|---|---|---|---|---|---|
| 1652502 | 250 | 262 | 6,1 | 90 | 18 | 7037 | Male | Standard |
| 1652501 | 250 | 262 | 6,1 | 90 | 18 | 8023 | Male | Standard |
| 16525F2 | 250 | 262 | 5,5 | 86 | 18 | 7037 | Female | Standard |
| 1653002 | 315 | 354 | 7,7 | 93 | 22 | 7037 | Male | Standard |
| 1653001 | 315 | 354 | 7,7 | 93 | 22 | 8023 | Male | Standard |
| 16530F2 | 315 | 330 | 6,9 | 89 | 22 | 7037 | Female | Standard |
