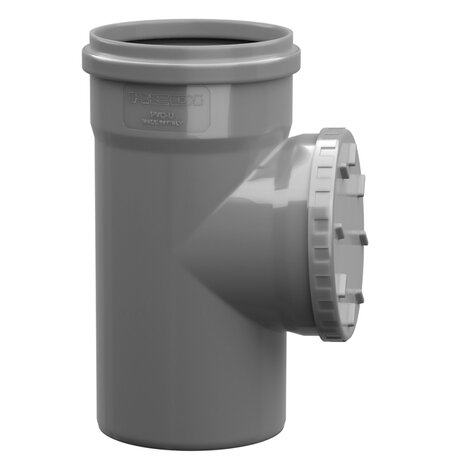

Access Pipe

Pipes and fittings are made of PVC-U for non pressure underground drainage and sewage applications.
Application area code is “U” or “UD” where applicable.

Push-Fit PVC-U Fittings EN 1401
Gaskets EN 681-1 DIN 4060

RAL 8023 Red - RAL 7037 Grey

Go back Data sheet

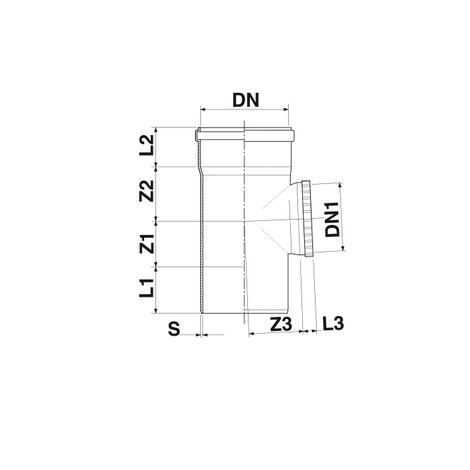

Reference DN (mm) DN1 (mm) S (mm) Z1 (mm) Z2 (mm) Z3 (mm) L1 (mm) L2 (mm) L3 (mm) RAL Gasket Version Type
1821142 110 110 3,0 59 69 69 60 55 36 7037 Bloccata/Fixed - -
182115E 110 110 3,0 59 69 69 60 55 36 8023 Standard - -
1821242 125 125 3,2 66 70 78 62 62 22 7037 Bloccata/Fixed upon request -
182125E 125 125 3,2 66 70 78 62 62 22 8023 Standard - -
1821642 160 160 4,0 83 99 99 85 72 24 7037 Bloccata/Fixed upon request -
182165E 160 160 4,0 83 99 99 85 72 24 8023 Standard - -
1822042 200 200 4,9 105 119 119 100 86 28 7037 Bloccata/Fixed - -
182205E 200 200 4,9 105 119 119 100 86 28 8023 Standard - -
1402552 250 250 6,2 120 152 152 135 101 70 7037 Standard - -
1402591 250 250 6,2 120 152 152 135 101 70 8023 Standard - -
1403091 315 315 7,7 166 185 185 146 114 90 8023 Standard - -
1404352 400 315 9,8 227 227 260 180 145 30 7037 Standard upon request Thermoformed
1404351 400 315 9,8 227 227 260 180 145 130 8023 Standard - Thermoformed
