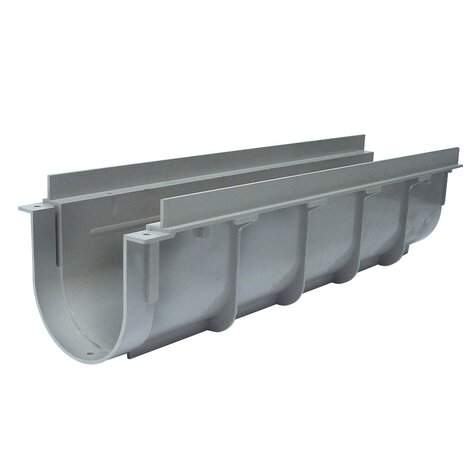

200 modular channel HIGH
SURFACE DRAINAGE SYSTEMS, MODULAR DRAINAGE CHANNELS
Linear evacuation by superficial drainage channels with grills. These channels can be placed in flat open areas without digging limitations.
To use in garages, yards, terraces, balconies, other outdoor areas, public bathrooms and lavatories (gymnasiums, etc.).
Material: PVC
Marking: CE
Regulation: EN124 A15 Load class
Features:
- self-supporting
- modular coupling by pins
- possibility to glue the components to ensure a higher water tightness
- a cover can be fastened by means of self-threading screws (preset holes)
N.B. Use solvent cement for PVC to weld the channels (Reference COLLA00 - COLLA25 - COLLA12).

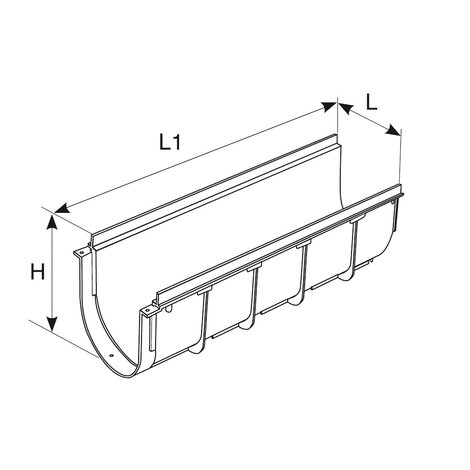

| Reference | RAL | H (mm) | L (mm) | L1 (mm) | Material |
|---|---|---|---|---|---|
| E1820A4 | 7035 | 170 | 200 | 250 | PVC |
