New CK/CP: among the most compact full-plastic diaphragm valves on the market
The CK/CP is a pneumatically actuated diaphragm valve that stands out for its innovative design and for being one of the most compact structures available.
The new CK/CP series represents the evolution of the CM/CP ones, offering greater reliability, durability, and versatility.
Designed for demanding industrial applications, it combines compactness, lightness, and high performance, ensuring safe and long-lasting operation even in heavy-duty conditions.
The new compact and lightweight piston actuator makes this valve the ideal choice for systems requiring very frequent operations and long valve life.
What makes the new CK/CP valve unique?
- Compressed air inlets adjustable by 90° to align connections with the piping according to the specific plant configuration, simplifying installation and integration.
-
Anti-unscrewing actuator system to prevent piston rotation, extending diaphragm life and ensuring maintenance-free operation.
-
Fully integrated sealing diaphragm within the valve body to guarantee optimal rubber compression without lateral expansion.
-
An innovative circular rib integrated into the valve body that enhances the diaphragm sealing system by promoting outward compression, maximizing sealing efficiency and eliminating the risk of leaks under pressure.
Watch the video and discover all the technical details
This new diaphragm valve is surprisingly compact, completely made of plastic, with 90° adjustable air inlets and an optimized internal design to ensure excellent performance even in the most demanding applications.
With an operating life exceeding 1 million cycles, the new design offers the highest number of maintenance-free operations.*
(*) Laboratory tests

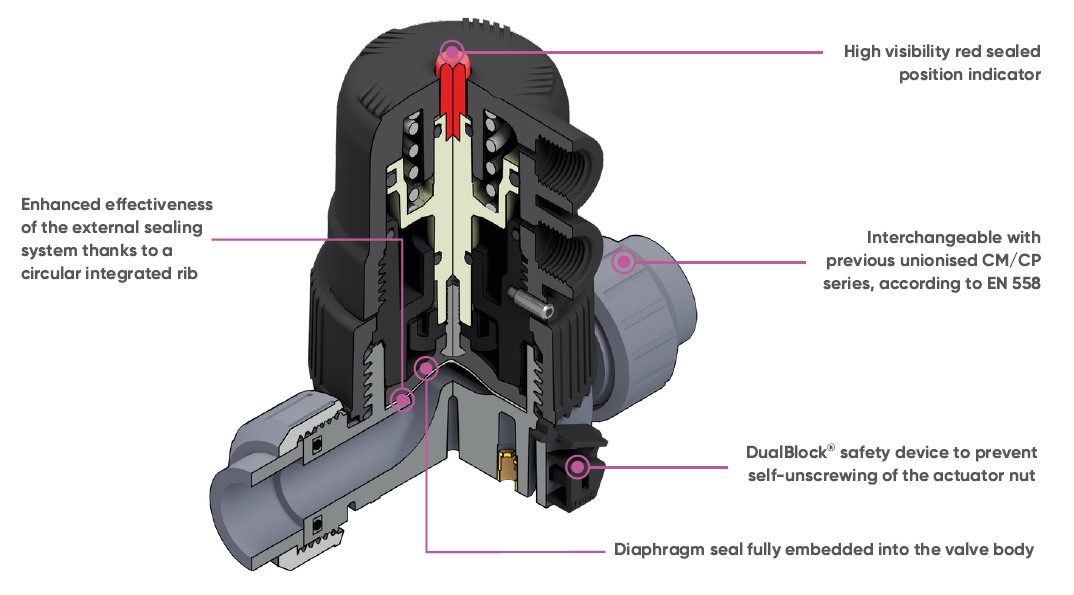

The 10 key features that make the difference:
-
Valve body with socket connection (PVC-U, PVC-C, PP-H, PVDF)
-
No metal parts in contact with the fluid or the environment
-
New range available in four materials
-
Safety guaranteed by DualBlock® technology to prevent actuator nut loosening
-
Total installation flexibility and alignment with the system thanks to new 90° adjustable air inlets
-
New diaphragm seal fully integrated into the valve body, to be protected against distortion
-
Maximum effectiveness of the external sealing system thanks to a circular rib integrated into the valve body
-
Compatible with a wide range of chemicals. For your projects, consult our Chemical Compatibility Guide
-
Ideal for industrial applications, dosing, and sampling
-
Compact and lightweight design for easy installation even in confined spaces
-
Flow rate increased by an average of 10% compared to the previous CM/CP series
Discover the new range, available in four materials
