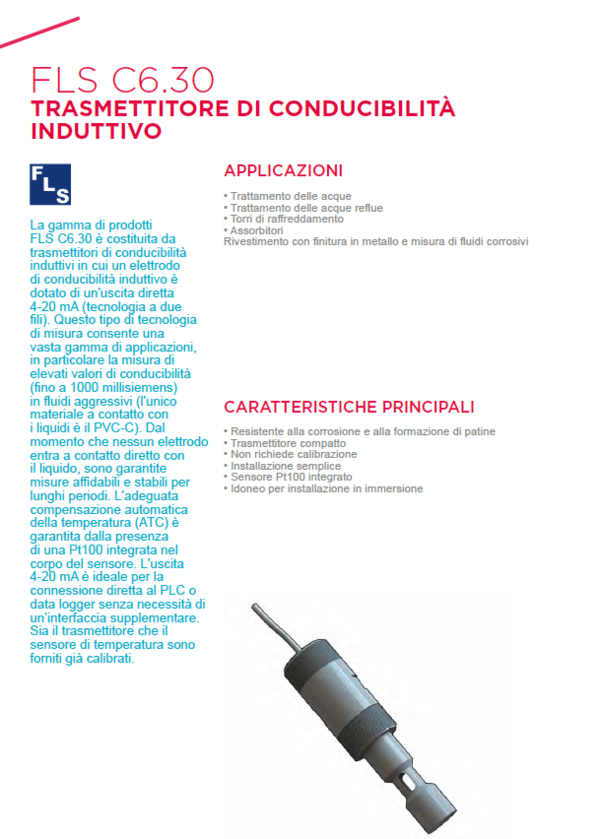

The FLS C6.30 product range consists of inductive conductivity transmitters where an inductive conductivity electrode has a direct 4-20 mA output (two-wire technology).
This type of measurement technology allows for a wide range of applications, in particular the measurement of high conductivity values (up to 1000 millisiemens) in aggressive fluids (the only material in contact with liquids is PVC-C).
Since no electrode comes into direct contact with the liquid, reliable and stable measurements are guaranteed over long periods.
Adequate Automatic Temperature Compensation (ATC) is ensured by the presence of a Pt100 integrated in the sensor body. The 4-20 mA output is ideal for direct connection to a PLC or data logger without the need for an additional interface.
Both the transmitter and the temperature sensor are supplied already calibrated.
APPLICATIONS:
- Water treatment
- Wastewater Treatment
- Cooling towers
- Absorbers Coating with metal finish and measurement of corrosive fluids
MAIN FEATURES:
- Resistant to corrosion and patina formation
- Compact transmitter
- Does not require calibration
- Simple installation
- Integrated Pt100 sensor
- Suitable for submerged installation
