YIV
Solvent weld fittings - equal socket.

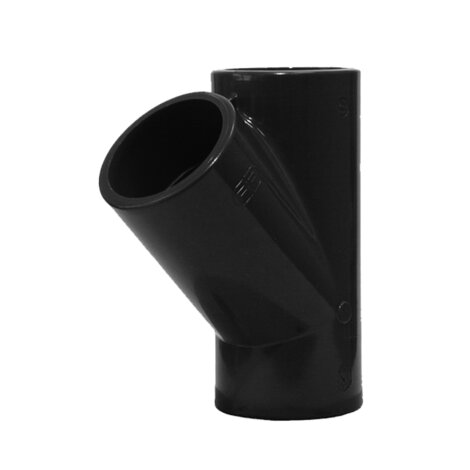

45° Tee with solvent weld sockets.
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement and cleaner-primer.

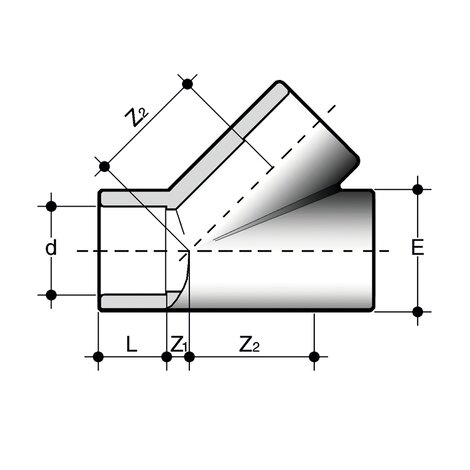

| Reference | d | PN | E | L | Z | Z2 | g |
|---|---|---|---|---|---|---|---|
| YIV020 | 20 | 16 | 27 | 16 | 7 | 30 | 39 |
| YIV025 | 25 | 16 | 33 | 19 | 7 | 35 | 62 |
| YIV032 | 32 | 16 | 41 | 22 | 9 | 44 | 110 |
| YIV040 | 40 | 16 | 51 | 26 | 11 | 55 | 190 |
| YIV050 | 50 | 16 | 63 | 31 | 12 | 68,5 | 335 |
| YIV063 | 63 | 16 | 78 | 38 | 15 | 85 | 570 |
| YIV075 | 75 | 10 | 87,5 | 44 | 17,5 | 94,5 | 750 |
| YIV090 | 90 | 10 | 104,5 | 51,5 | 20,5 | 112,5 | 1165 |
| YIV110 | 110 | 10 | 127,5 | 62 | 25 | 138 | 2175 |
| YIV160 | *160 | 10 | 189 | 86 | 35 | 200 | 6500 |
*resale product
