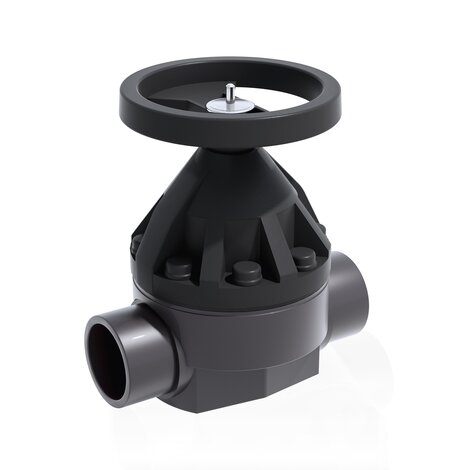

VMDV - Diaphragm valve DN 80:100

Diaphragm valve with male ends for solvent welding, metric series.

The VM is particularly suitable for shutting off and regulating abrasive or dirty fluids. The handwheel control and diaphragm seal provide precise and effective control, while reducing the risk of water hammer to a minimum.

Main features:

Handwheel in (PA-GR) with high mechanical strength and ergonomic grip for optimum manageability
Metal optical position indicator supplied as standard
Full protection bonnet in PP-GR Internal circular and symmetrical diaphragm sealing area
Diaphragm available in EPDM, FPM, PTFE (NBR on request) and easy to replace
Threaded metal inserts for anchoring the valve
New valve body internal design: substantially higher flow coefficient resulting in lower pressure drops. Optimised adjustment curve for effective and precise flow rate regulation

Go back Data sheet

Reference	d	DN	PN	B	B[5:1]	H	H[5:1]	h	I	J	L	g
VMDV090E	90	80	*10	225	55	300	200	23	100	M12	51	7000
VMDV110E	110	100	*10	295	69	340	250	23	120	M12	61	10500

Reference	d	DN	PN	B	B[5:1]	H	H[5:1]	h	I	J	L	g
VMDV090F	90	80	*10	225	55	300	200	23	100	M12	51	7000
VMDV110F	110	100	*10	295	69	340	250	23	120	M12	61	10500

Reference	d	DN	PN	B	B[5:1]	H	H[5:1]	h	I	J	L	g
VMDV090P	90	80	*10	225	55	300	200	23	100	M12	51	7000
VMDV110P	110	100	*10	295	69	340	250	23	120	M12	61	10500

Connection system for solvent welding and for flanged joints
Optimised fluid dynamic design: maximum output flow rate thanks to the optimised efficiency of the fluid dynamics that characterise the new internal geometry of the body
Handwheel that stays at the same height during rotation, with internal bearing to minimise friction and operating torque
Standard optical indicator
Internal operating components in metal totally isolated from the conveyed fluid
Bonnet fastening screws in STAINLESS steel protected against the external environment by PE plugs
New flanged bodies: the new bodies, characterised by a monolithic flanged structure, are available in PVC-U, PVC-C, PP-H and PVDF. This design, free from body and flange joints, greatly reduces mechanical stress and increases system performance.

210 KB, PDF

VM Technical Catalogue
