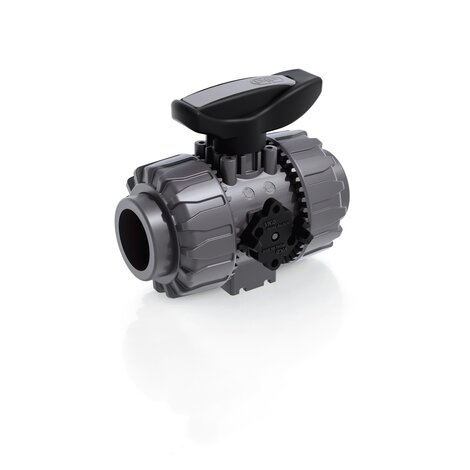

VKDAV - DUAL BLOCK® 2-way ball valve DN 10:50

DUAL BLOCK® 2-way ball valve with female ends for solvent welding, ASTM series.

FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design.
VKD is a True Union ball valve that meets the most stringent needs required by industrial applications.

Main features:

  • Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
  • Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
  • Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Go back Data sheet
VKDAV - DUAL BLOCK® 2-way ball valve DN 10:50
Disegno tecnico della valvola a sfera VKDI, VKDL, VKDA, VKDJ DN 10:50
VKDAV - DUAL BLOCK® 2-way ball valve DN 10:50
Disegno tecnico della valvola a sfera VKDI, VKDL, VKDA, VKDJ DN 10:50
Reference d DN PN B B[5:1] C C[5:1] E H H[5:1] L Z g
VKDAV038E 3/8” 10 16 54 29 67 40 54 117 65 19,5 78 230
VKDAV012E 1/2” 15 16 54 29 67 40 54 117 65 22,5 72 215
VKDAV034E 3/4” 20 16 65 34,5 85 49 65 129 70 25,5 78 345
VKDAV100E 1” 25 16 69,5 39 85 49 73 142 78 28,7 84,6 448
VKDAV114E 1” 1/4 32 16 82,5 46 108 64 86 162 88 32 98 718
VKDAV112E 1” 1/2 40 16 89 52 108 64 98 172 93 35 102 975
VKDAV200E 2” 50 16 108 62 134 76 122 199 111 38,2 122,6 1712
Reference d DN PN B B[5:1] C C[5:1] E H H[5:1] L Z g
VKDAV038F 3/8” 10 16 54 29 67 40 54 117 65 19,5 78 230
VKDAV012F 1/2” 15 16 54 29 67 40 54 117 65 22,5 72 215
VKDAV034F 3/4” 20 16 65 34,5 85 49 65 129 70 25,5 78 345
VKDAV100F 1” 25 16 69,5 39 85 49 73 142 78 28,7 84,6 448
VKDAV114F 1” 1/4 32 16 82,5 46 108 64 86 162 88 32 98 718
VKDAV112F 1” 1/2 40 16 89 52 108 64 98 172 93 35 102 975
VKDAV200F 2” 50 16 108 62 134 76 122 199 111 38,2 122,6 1712
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Floating full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Ball seat carriers can be adjusted using the Easytorque adjustment kit
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
