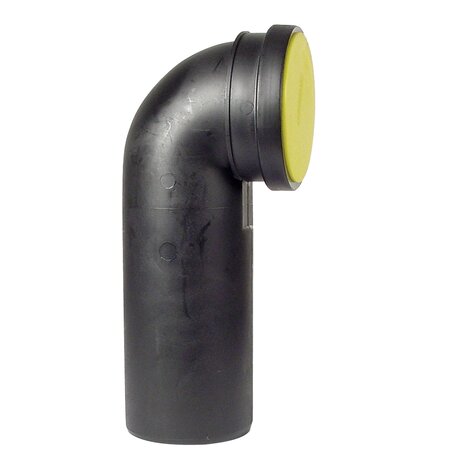

Vertical Wall Hung Toilet
ULTRAMAX completed with AMAX fittings range is the push-fit polypropylene complete soil and waste system for civil and industrial waste water drainage.
EN 1451 Push-Fit PP Pipe and Fittings
Impact-Resistant
B1 Fire Reaction Class, Self-extinguishing

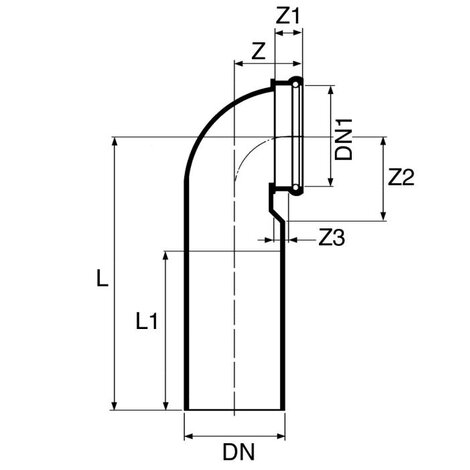

| Reference | Colour | D1 (mm) | Z (mm) | Z1 (mm) | Z2 (mm) | Z3 (mm) | L (mm) | L1 (mm) | DN (mm) | Material |
|---|---|---|---|---|---|---|---|---|---|---|
| K2530PE | Black | 90 | 76 | 34 | 83 | 17 | 225 | 120 | 90 | PE |
| K2531PE | Black | 90 | 76 | 34 | 95 | 17 | 225 | 120 | 110 | PE |
Certificates
Downloads
1.2 MB,
PDF
Catalogue REDI
