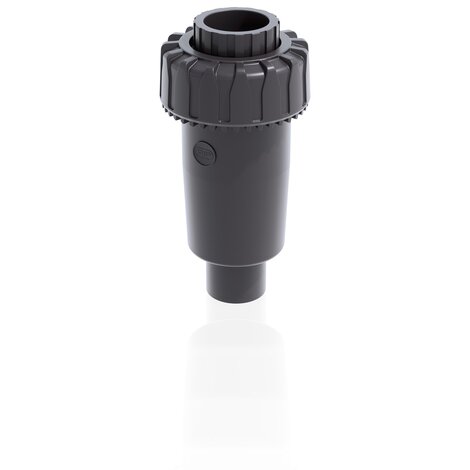

VAIV - Air release valve DN 15:50
Air release valve with male ends for solvent welding, metric series.
The purpose of the VA air release is to eliminate any air entering the pipe with the liquid.
Need help to choose the ideal product for your needs ? Try ou new Valve configurator that will help guide you throught the technical and functional characteristic of our wide range of solutions !

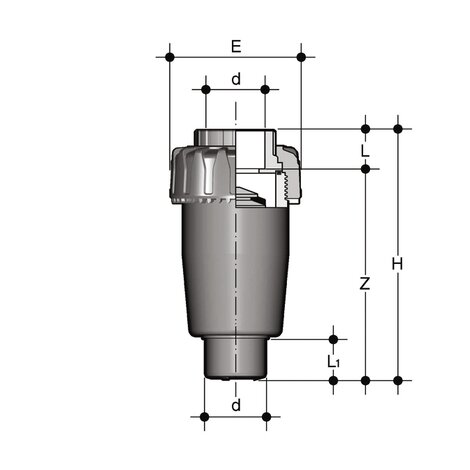

| Reference | d | DN | PN | E | H | L | L1 | Z | g |
|---|---|---|---|---|---|---|---|---|---|
| VAIV020E | 20 | 15 | 16 | 55 | 103 | 16 | 18 | 87 | 105 |
| VAIV025E | 25 | 20 | 16 | 66 | 125 | 19 | 20 | 106 | 185 |
| VAIV032E | 32 | 25 | 16 | 75 | 150 | 22 | 24 | 128 | 280 |
| VAIV040E | 40 | 32 | 16 | 87 | 171 | 26 | 28 | 145 | 415 |
| VAIV050E | 50 | 40 | 16 | 100 | 187 | 31 | 34 | 156 | 570 |
| VAIV063E | 63 | 50 | 16 | 122 | 223 | 38 | 41 | 185 | 950 |
- Connection system for solvent weld and threaded joints
- No metal parts in contact with the fluid
- Can be used as a vacuum breaker valve when installed with the nut at the bottom
- Valve material compatibility (PVC-U) with water, drinking water and other food substance conveyance according to current regulations
- Can be maintained with the valve body installed
