ULF0X.X.X

Ultra Low Flow Sensors.

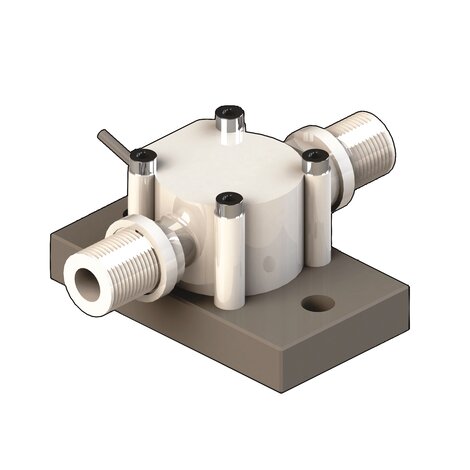

The FLS ULF, Ultra Low Flow sensor is a device designed for use with any type of aggressive, solid‑free liquid. The sensor can be mounted on flexible or rigid pipes through connections with 1/4" GAS male thread. The paddlewheel sensor produces a frequency output proportional to the speed of the flow that can be transmitted and processed without difficulty. The ULF sensor offers two different flow ranges, starting from 1.5 l/h (0.0066 gpm). The construction materials, POM or ECTFE (Halar®), guarantee particularly high strength and chemical resistance.

Data sheet

Reference	Version	Power supply	Lenght	Main Wetted Materials	Enclosure	Flow Rate Range	Weight (gr.)
ULF01.H.0	Push-Pull	5 - 24 VDC	77 mm	POM, FKM	IP65	From 1,5 to 100 l/h*	170
ULF01.H.2	Push-Pull	5 - 24 VDC	77 mm	ECTFE, FKM	IP65	From 1,5 to 100 l/h*	200
ULF01.H.3	Push-Pull	5 - 24 VDC	77 mm	ECTFE, KALREZ	IP65	From 1,5 to 100 l/h*	200
ULF01.R.0	Reed	None	77 mm	POM, FKM	IP65	From 1,5 to 100 l/h*	170
ULF01.R.2	Reed	None	77 mm	ECTFE, FKM	IP65	From 1,5 to 100 l/h*	200
ULF01.R.3	Reed	None	77 mm	ECTFE, KALREZ	IP65	From 1,5 to 100 l/h*	200
ULF03.H.0	Push-Pull	5 - 24 VDC	77 mm	POM, FKM	IP65	From 1,5 to 100 l/h*	170
ULF03.H.2	Push-Pull	5 - 24 VDC	77 mm	ECTFE, FKM	IP65	From 1,5 to 100 l/h*	200
ULF03.H.3	Push-Pull	5 - 24 VDC	77 mm	ECTFE, KALREZ	IP65	From 1,5 to 100 l/h*	200
ULF03.R.0	Reed	None	77 mm	POM, FKM	IP65	From 1,5 to 100 l/h*	170
ULF03.R.2	Reed	None	77 mm	ECTFE, FKM	IP65	From 1,5 to 100 l/h*	200
ULF03.R.3	Reed	None	77 mm	ECTFE, KALREZ	IP65	From 1,5 to 100 l/h*	200

*(0.0066-0.44 gpm)

**(0,0264-1,1 gpm)

APPLICATIONS:

Water treatment
Chemical industry
Pharmaceutical industry
Batching systems
Laboratory systems

MAIN CHARACTERISTICS:

Parts in contact with liquids in POM or ECTFE (Halar®)
Two flow rate ranges available:
- from 1.5 to 100 l/h (0.0066‑0.44 gpm)
- from 6 to 250 l/h (0.0264‑1.1 gpm)
High chemical resistance
Easy mounting

289.1 KB, PDF

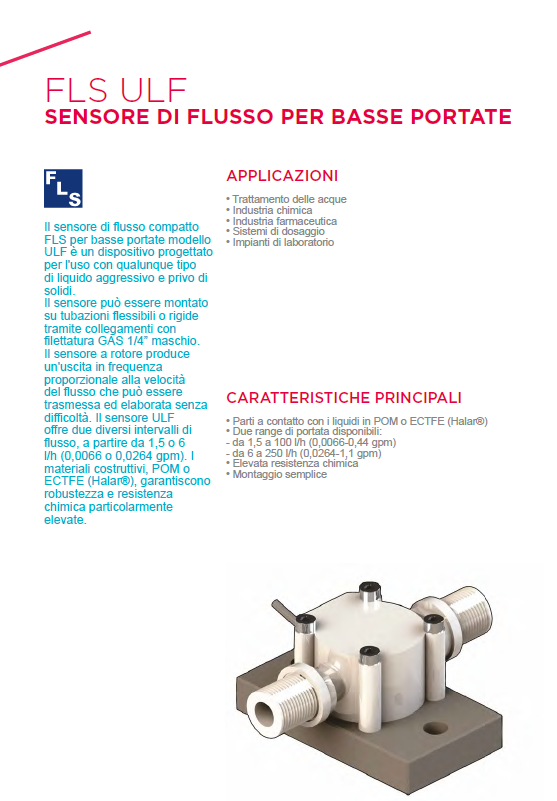

ULF Ultra low Flow sensor
