TRIC

Solvent weld fittings - reducers.

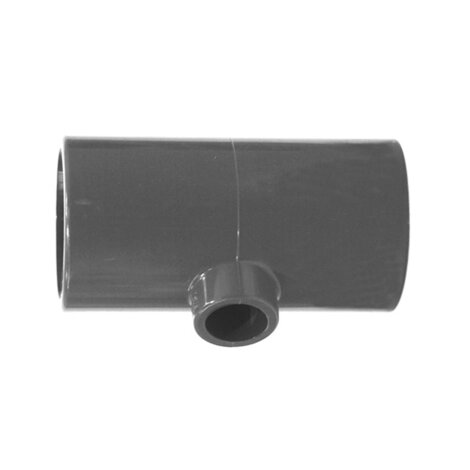

90° reducing Tee with reduced branch and solvent weld sockets.

Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.

Go back Data sheet

Part no.	d x d₁	PN	E	E₁	L	L₁	Z	Z₁	g
TRIC025020	25 x 20	16	33	28	19	16	14	14	41
TRIC032020	32 x 20	16	41	28	22	16	17,5	17,5	66
TRIC032025	32 x 25	16	41	34	22	19	17,5	17,5	72
TRIC040020	40 x 20	16	50	29	26	16	22	22	111
TRIC040025	40 x 25	16	50	34	26	19	22	22	111
TRIC050025	50 x 25	16	61	35	31	19	27	27	176
TRIC050032	50 x 32	16	61	42	31	22	27	27	182
TRIC063025	63 x 25	16	76	36	38	19	33,5	33,5	320
TRIC063032	63 x 32	16	76	43	38	22	33,5	33,5	325
TRIC075025	75 x 25	16	91	33	44	16	40,5	39	470
TRIC090025	90 x 25	16	109	33	51	16	48,5	46	773
TRIC110025	110 x 25	16	133	33	61	16	61	56	1170
