Thermoformed bend R=1.5D 45° F/F PN10
Bend PVC-U, F/F, Grey RAL 7011, gluing connection.
The fittings comply with UNI EN ISO 1452, DIN 8063, ISO 2045, ISO/DIS 6455 standards for the transport of pressurised fluids for the supply of drinking water, wastewater and food fluids: oil, wine, milk.

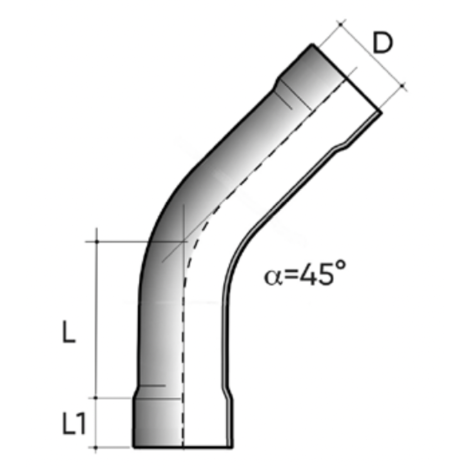

| Reference | D (mm) | L (mm) | L1 (mm) |
|---|---|---|---|
| B4VP10050IIL | 50 | 40 | 35 |
| B4VP10063IIL | 63 | 46 | 43 |
| B4VP10075IIL | 75 | 54 | 51 |
| B4VP10090IIL | 90 | 63 | 58 |
| B4VP12110IIL | *110 | 80 | 70 |
| B4VP12125IIL | *125 | 89 | 79 |
| B4VP12140IIL | *140 | 98 | 87 |
| B4VP12160IIL | *160 | 119 | 99 |
| B4VP12180IIL | *200 | 143 | 122 |
*PN12,5
