ST1 - Pipe clip for ISO-DIN pipes
Pipe clip for ISO-DIN pipes (available also in PE).

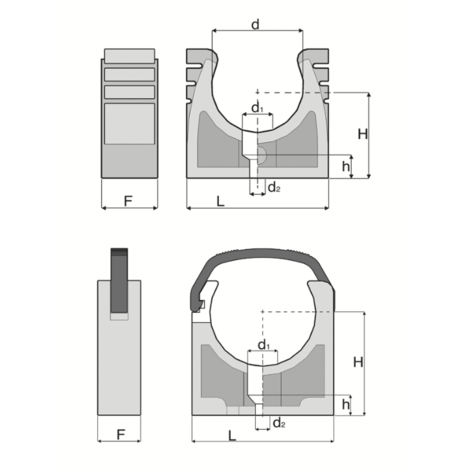

| Reference | D | PN | H | L | d2 | d1 | h | f | Fig. | g |
|---|---|---|---|---|---|---|---|---|---|---|
| 1RST111000 | 110 | 16 | 84 | 139 | 9 | 17 | 14 | 30 | B | 100 |
| 1RST116000 | 16 | 16 | 23 | 28 | 5 | 10 | 7 | 16 | A | 5 |
| 1RST120000 | 20 | 16 | 25 | 33 | 5 | 10 | 7 | 16 | A | 7 |
| 1RST125000 | 25 | 16 | 27 | 38 | 5 | 10 | 7 | 16 | A | 8 |
| 1RST132000 | 32 | 16 | 31 | 48 | 5 | 10 | 7 | 16 | A | 13 |
| 1RST140000 | 40 | 16 | 41 | 54 | 5 | 10 | 7 | 20 | B | 23 |
| 1RST150000 | 50 | 16 | 46 | 64 | 7 | 14 | 9 | 23 | B | 29 |
| 1RST163000 | 63 | 16 | 56 | 80 | 7 | 14 | 9 | 25 | B | 39 |
| 1RST175000 | 75 | 16 | 63 | 94 | 9 | 17 | 10 | 27 | B | 55 |
| 1RST190000 | 90 | 16 | 72 | 115 | 9 | 17 | 13 | 30 | B | 85 |
