QPM - Stub flange for butterfly and wafer check valves

Flat Stub flange short spigot for butt welding, for butterfly valves FE-FK and inlet side for wafer check valves CR-FR.

Data sheet
QPM - Stub flange for butterfly and wafer check valves

PN10 SDR 11 -S 5

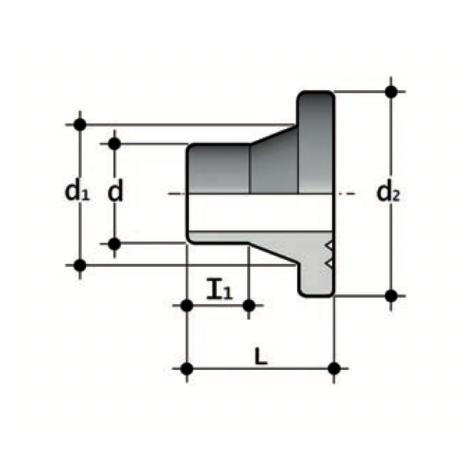

Reference d DN d1 d2 L l1
QPM11050 50 40 61 88 47 21
QPM11063 63 50 75 102 47 16
QPM11075 75 65 89 122 47 14
QPM11090 90 80 105 138 76,5 33
QPM11110 110 100 125 158 76,5 27
QPM11125 125 125 132 158 76,5 42
QPM11140 140 125 155 188 76,5 34
QPM11160 160 150 175 212 76,5 34
QPM11180 180 150 182 212 76,5 30
QPM11200 180 150 182 212 76,5 30
QPM11225 225 200 235 268 96 46
QPM11250 250 200 285 320 96 35
QPM11280 280 250 291 320 96 45

PN6 SDR 17,6 - S8,3

Reference d DN d1 d2 L l1
QPM17050 50 40 61 88 47 21
QPM17063 63 50 75 102 47 16
QPM17075 75 65 89 122 47 14
QPM17090 90 80 105 138 76,5 33
QPM17110 110 100 125 158 76,5 27
QPM17125 125 125 132 158 76,5 42
QPM17140 140 125 155 188 76,5 34
QPM17160 160 150 175 212 76,5 34
QPM17180 180 150 182 212 76,5 30
QPM17200 200 200 232 268 96 36
QPM17225 225 200 235 268 96 46
QPM17250 250 200 285 320 96 35
QPM17280 280 250 291 320 96 45
