QBXM - Stub flange exit side for clapet wafer check valves SDR17,6 - S8,3

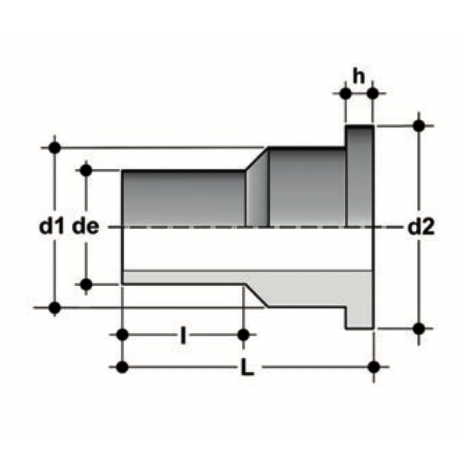

Stub flange short spigot for butt welding, exit side for clapet wafer check valves.
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).
| Reference | de | DN | h | l | d1 | d2 | L |
|---|---|---|---|---|---|---|---|
| QBXM17280 | *280 | 250 | 25 | 40 | 292 | 328 | 185 |
| QBXM17050 | *50 | 40 | 12 | 20 | 61 | 90 | 50 |
| QBXM17063 | *63 | 50 | 14 | 20 | 77 | 105 | 54 |
| QBXM17075 | *75 | 65 | 16 | 20 | 91 | 125 | 65 |
| QBXM17090 | *90 | 80 | 17 | 35 | 107 | 138 | 95 |
| QBXM17110 | *110 | 100 | 18 | 35 | 127 | 160 | 100 |
| QBXM17125 | *125 | 125 | 25 | 35 | 132 | 160 | 100 |
| QBXM17140 | *140 | 125 | 18 | 35 | 157 | 190 | 110 |
| QBXM17160 | *160 | 150 | 18 | 35 | 186 | 216 | 125 |
| QBXM17180 | *180 | 150 | 20 | 40 | 186 | 216 | 120 |
| QBXM17200 | *200 | 200 | 24 | 40 | 236 | 272 | 180 |
| QBXM17225 | *225 | 200 | 24 | 40 | 236 | 272 | 155 |
| QBXM17250 | *250 | 200 | 25 | 40 | 292 | 328 | 205 |
*resale products
