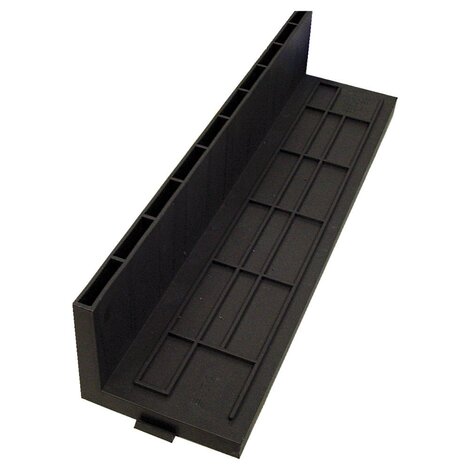

PP Slot grill PP 130x500 (high)
SURFACE DRAINAGE SYSTEMS, MODULAR DRAINAGE CHANNELS
Linear evacuation by superficial drainage channels with grills.
These channels can be placed in flat open areas without digging limitations. Suitable for pedestrian areas.
Material: PP
Slot grill can be installed in all drainage channels 130 with C section grate

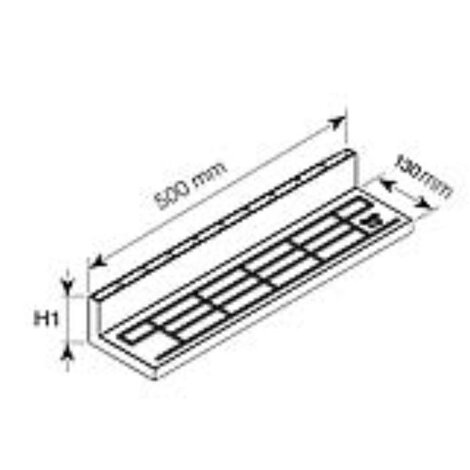

| Reference | Colour | Dim (mm) | H1 Int (mm) | dimSlot | I/s | Material |
|---|---|---|---|---|---|---|
| EGF10PP | Black | 130x500 | 85 | 8X49 | 0,4 | PP |
| EGFBAPP | Black | 130x500 | 20 | 8X49 | 0,4 | PP |
Downloads
1.9 MB,
PDF
Catalogue REDI
768.7 KB,
PDF

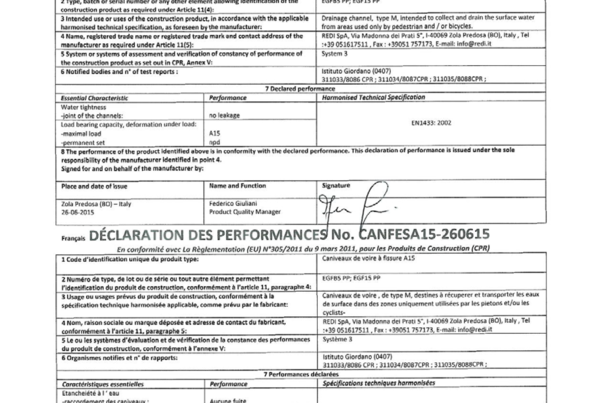

Certification Redi
