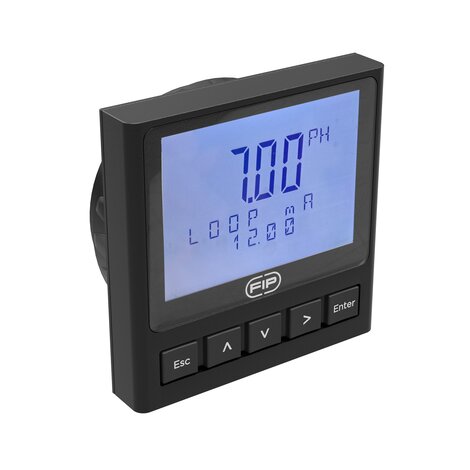

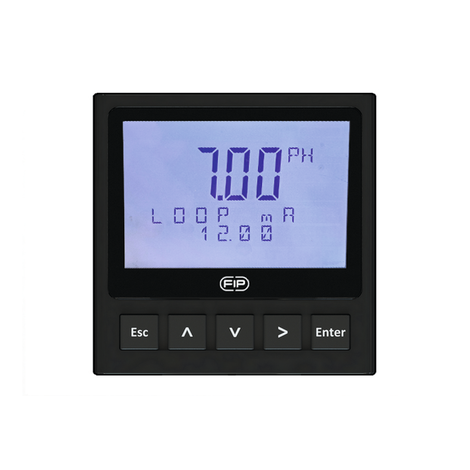

M9.36.PX - M9.36.WX
pH/ORP Monitor and Transmitter.
The FLS M9.36 is designed for industrial applications requiring precise and reliable pH and ORP measurements. The large 4” graphic display with high-brightness backlight ensures clear reading of values even from a distance, providing complete information on measurement status. Calibration with automatic buffer recognition and in-line adjustment guarantees accuracy under all operating conditions. The 4-20 mA analog output enables data transmission to remote systems for safe and continuous process control.
| Reference | Mounting | Power supply | Wire power Technology | Sensor Input | Output | Weight (gr) |
|---|---|---|---|---|---|---|
| M9.36.P1 | Panel | 12 - 24 VDC | 3/4 wires | pH/ORP, Temperature | 1(4-20mA) | 550 |
| M9.36.W1 | Wall | 12 - 24 VDC | 3/4 wires | pH/ORP, Temperature | 1(4-20mA) | 650 |
| M9.36.W2 | Wall | 110 - 230 VAC | 3/4 wires | pH/ORP, Temperature | 1(4-20mA) | 750 |
APPLICATIONS:
- Water treatment and regeneration
- Industrial wastewater treatment and recovery
- Scrubber control
- Neutralisation systems
- Heavy metal recovery
- Coating of metal surfaces
- Processing and manufacturing industry
- Chemical production
- Swimming pools and spas
MAIN CHARACTERISTICS:
- Large display with backlight
- Automatic recognition of buffers for pH
