F3.10.H.XX

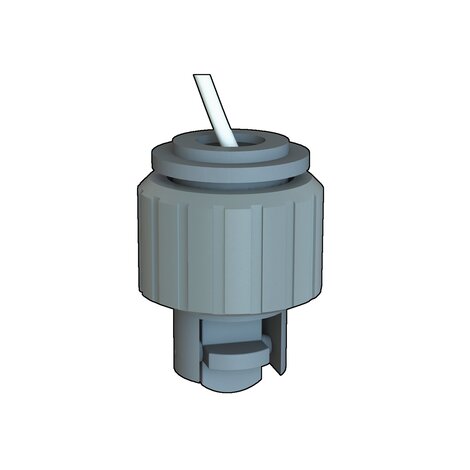

Mini Paddlewheel Flow Sensor
Mini Paddlewheel Flow Sensor
The simple and reliable
paddlewheel technology
has been moved into this
miniflow sensor type FLS
F3.10, designed for use with
every kind of solid-free liquids.
The sensor can measure
flow from 0.25 m/s (0.8 ft/s)
producing a frequency output
signal highly repeatable. A
rugged construction and a
proven technology guarantee
exceptional performances
with little or no maintenance
required. The very small
dimension and a special
design make it suitable for
installation on FIP standard
Tee-fittings from DN15 to DN40
(0.5 to 1.5 in.).
| Reference | Version | Power supply | Lenght | Main Wetted Materials | Enclosure | Flow Rate Range | Weight (gr.) |
|---|---|---|---|---|---|---|---|
| F3.10.H.01 | Hall | 5- 24 VCC | 41 mm | ABS $ EPDM | IP68 | From 0,15 to 4 m/s* | 100 |
| F3.10.H.02 | Hall | 5- 24 VCC | 41 mm | ABS $ FKM | IP68 | From 0,15 to 4 m/s* | 100 |
APPLICATIONS:
- Water treatment
- Filtration systems
- Pure water production
- Water monitoring
- Fertigation
MAIN FEATURES:
- IP68 enclosure
- ABS body with EPDM or FPM seal
- ABS 4-blade paddlewheel (no bearings)
- Mono-directional design
- Installation on standard FIP tees
- PVDF body version on request
