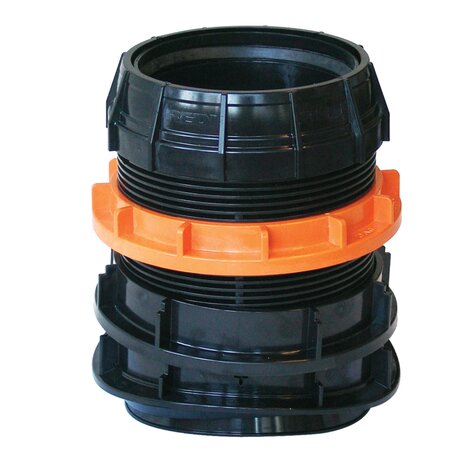

Easy Clip Plus Ø160

Derivations are elements that provide for connections to pipelines. Mechanical connections, which do not require the use of adhesives, are particularly suitable for new installations, for carrying out sewer connections or connections to carrier drains, for existing pipelines. In order to greatly simplify the creation of a new connection to a previously installed carrier drain. They are suitable for both waste water and sewage.

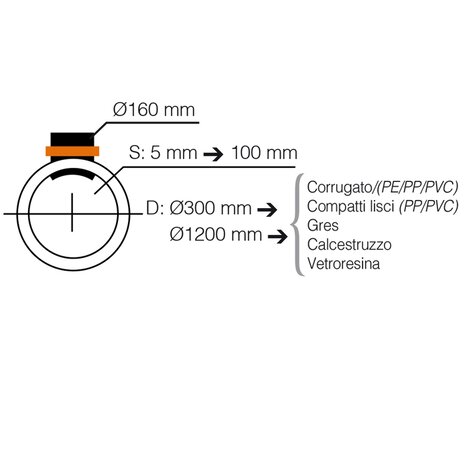

Mechanical saddle for structured, compact solid wall, clay, concrete and GRP pipes.
Standard lip ring
Included one tube of lubricant: Camon scivolina Art. 6741500 jar gr. 150

GUIDE TO CHOOSE THE RIGHT MECHANICAL SADDLE https://configuratore.redi.it/

note :

A spanner is supplied with each saddle

Go back Data sheet

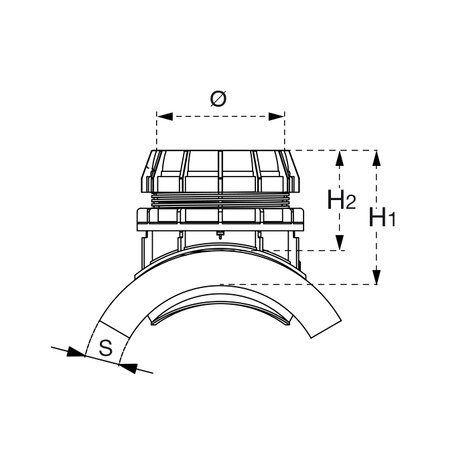

Reference	certificate	H1 (mm)	Ø (mm)	Version
1A16058	CSTB: ANF EN 1401 / MPA: DIN EN 13598-1	255	160	-
1C16058	CSTB: ANF EN 1401 / MPA: DIN EN 13598-1	255	160	-
1D16058	CSTB: ANF EN 1401 / MPA: DIN EN 13598-1	255	160	-
1E16058	CSTB: ANF EN 1401 / MPA: DIN EN 13598-1	255	160	-
1G16058	CSTB: ANF EN 1401 / MPA: DIN EN 13598-1	255	160	-
1H16058	CSTB: ANF EN 1401 / MPA: DIN EN 13598-1	255	160	-
1J16058	CSTB: ANF EN 1401 / MPA: DIN EN 13598-1	255	160	-
1K16058	CSTB: ANF EN 1401 / MPA: DIN EN 13598-1	255	160	-
1X16058	CSTB: ANF EN 1401	205	160	upon request
1Y16058	CSTB: ANF EN 1401 / MPA: DIN EN 13598-1	205	160	-
1Z16058	CSTB: ANF EN 1401	205	160	-
