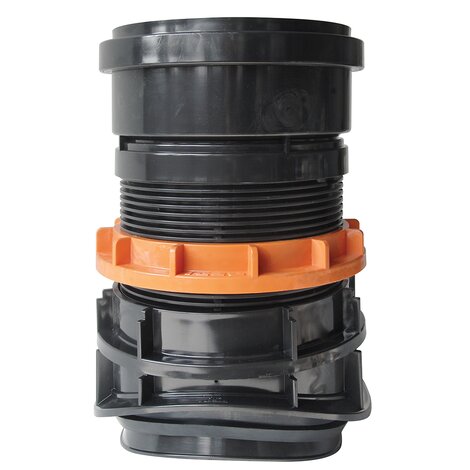

Easy Clip Link Ø200

Derivations are elements that provide for connections to pipelines. Mechanical connections, which do not require the use of adhesives, are particularly suitable for new installations, for carrying out sewer connections or connections to carrier drains. for existing pipelines. In order to greatly simplify the creation of a new connection to a previously installed carrier drain. They are suitable for both waste water and sewage.

Mechanical saddle for structured, compact solid wall, clay, concrete and GRP pipes.
Standard lip ring
Included one tube of lubricant: Camon scivolina Art. 6741500 jar gr. 150

GUIDE TO CHOOSE THE RIGHT MECHANICAL SADDLE EASY CLIP CALCULATOR

note :

A spanner is supplied with each saddle

Need help choosing the right Easy Clip connection for your project's sewer system? Try our Easy Clip configurator, which will guide you step-by-step to identify the most suitable solution based on your installation requirements.

Reference	certificate	H1 (mm)	Ø (mm)	Version
1A20058	CSTB: ANF EN 1401 / MPA: DIN EN 13598-1	315	200	-
1C20058	CSTB: ANF EN 1401 / MPA: DIN EN 13598-1	315	200	-
1D20058	CSTB: ANF EN 1401 / MPA: DIN EN 13598-1	315	200	-
1E20058	CSTB: ANF EN 1401 / MPA: DIN EN 13598-1	315	200	-
1G20058	CSTB: ANF EN 1401 / MPA: DIN EN 13598-1	315	200	-
1H20058	CSTB: ANF EN 1401 / MPA: DIN EN 13598-1	315	200	-
1J20058	CSTB: ANF EN 1401 / MPA: DIN EN 13598-1	315	200	-
1K20058	CSTB: ANF EN 1401 / MPA: DIN EN 13598-1	315	200	-
1X20058	CSTB: ANF EN 1401	265	200	upon request
1Y20058	CSTB: ANF EN 1401 / MPA: DIN EN 13598-1	265	200	-
1Z20058	CSTB: ANF EN 1401	265	200	-
