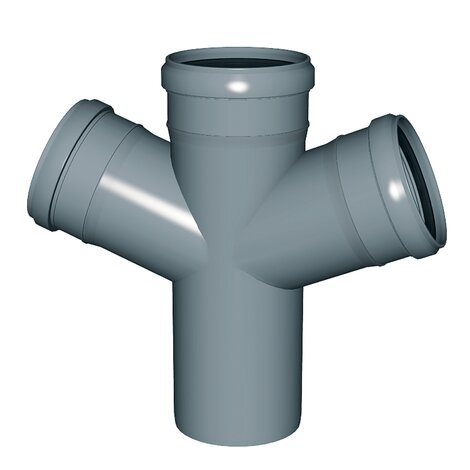

Double branch
ULTRAMAX completed with AMAX fittings range is the push-fit polypropylene complete soil and waste system for civil and industrial waste water drainage.
EN 1451 Push-Fit PP Pipe and Fittings
Impact-Resistant
B1 Fire Reaction Class, Self-extinguishing

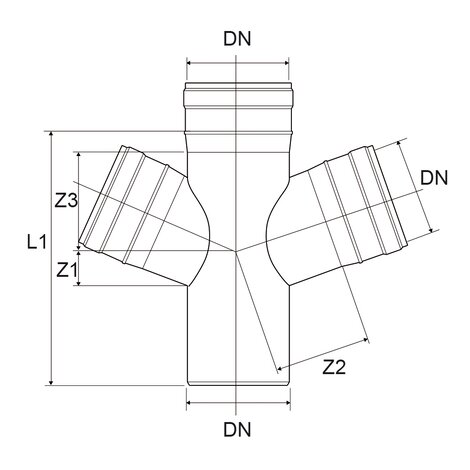

| Reference | Colour | Z1 (mm) | Z2 (mm) | Z3 (mm) | L1 (mm) | α | DN (mm) | Version |
|---|---|---|---|---|---|---|---|---|
| Z4250PP | Grey RAL 7037 | 20 | 41 | 41 | 124 | 67°30' | 50 | upon request |
| Z4275PP | Grey RAL 7037 | 28 | 59 | 59 | 153 | 67°30' | 75 | - |
| Z4511PP | Grey RAL 7037 | - | - | - | - | 87°30' | 90 | - |
| Z4611PP | Grey RAL 7037 | - | - | - | - | 45° | 110 | - |
| Z4211PP | Grey RAL 7037 | 40 | 86 | 86 | 201 | 67°30' | 110 | - |
| Z4311PP | Grey RAL 7037 | - | - | - | - | 87°30' | 110 | - |
Certificates
Downloads
1.2 MB,
PDF
Catalogue REDI
