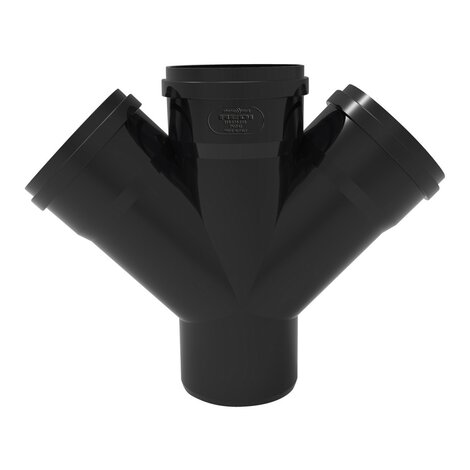

Double Branch 45°

PHONOBLACK Soundproof PVC-U Soil & Waste System

Push-Fit PVC-U Pipe and Fittings
13 dB - 2 l/s Acoustic Performance
B s1 d0 Fire Reaction Euroclass

Thermoplastic mineral-reinforced material PVC-U
Ring jointed sockets fitted with certified elastomeric liprings
Color: RAL 9005 - Black

Go back Data sheet

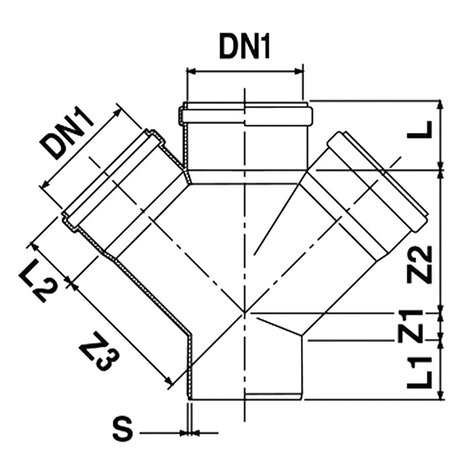

Reference Colour DN1 (mm) S (mm) Z1 (mm) Z2 (mm) Z3 (mm) L1 (mm) L2 (mm) DN (mm)
04150P8 Black 40 3 -20 93 105 75 44 100
04149P8 Black 50 3 -15 99 110 64 46 100
03611P8 Black 110 3,2 30 141 141 60 57 110
