Bend S/S 45°
PVC soil & waste push-fit fittings for waste water discharge are suitable for installation in civil and industrial buildings. Material and European Norm UNI EN1329.
| note : | Sockets are fitted with preassembled and prelubricated o-ring gasket. |

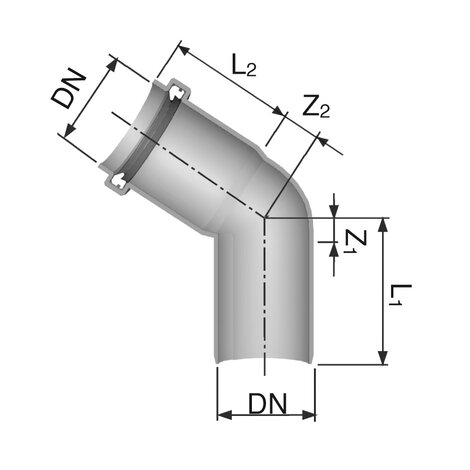

| Part no. | Colour | Z1 (mm) | Z2 (mm) | L1 (mm) | L2 (mm) | DN (mm) |
|---|---|---|---|---|---|---|
| 0700411 | Red RAL 8023 | 8 | 22 | 48 | 36 | 40 |
| 0700511 | Red RAL 8023 | 10 | 24 | 52 | 40 | 50 |
| 0700611 | Red RAL 8023 | 8 | 22 | 48 | 36 | 63 |
| 0730711 | Red RAL 8023 | 16 | 25 | 52 | 45 | 75 |
| 0708211 | Red RAL 8023 | 8 | 22 | 48 | 36 | 82 |
| 0701011 | Red RAL 8023 | 20 | 35 | 62 | 53 | 100 |
Certificates
Downloads
499.3 KB,
PDF
get_app
REDI Export Catalogue
