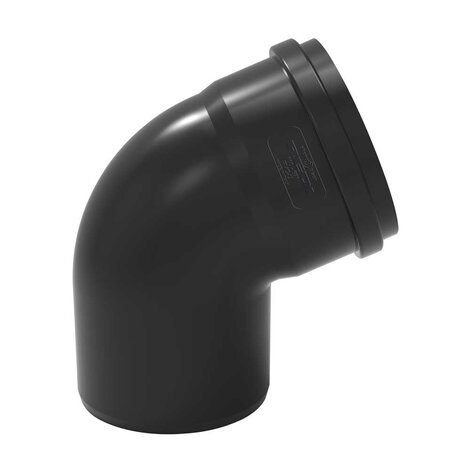

Bend 67°30' M/F
PHONOBLACK Soundproof PVC-U Soil & Waste System
Push-Fit PVC-U Pipe and Fittings
13 dB - 2 l/s Acoustic Performance
B s1 d0 Fire Reaction Euroclass
Thermoplastic mineral-reinforced material PVC-U
Ring jointed sockets fitted with certified elastomeric liprings
Color: RAL 9005 - Black
| Reference | Colour | S (mm) | Z1 (mm) | Z2 (mm) | L1 (mm) | L2 (mm) | α | DN (mm) | Version |
|---|---|---|---|---|---|---|---|---|---|
| 01307P8 | Black | 3 | 25 | 40 | 60 | 51 | 67°30' | 75 | - |
| 01309P8 | Black | 5,1 | 36 | 42 | 59 | 55,7 | 67°30' | 90 | High thicknes |
| 07210P8 | Black | 3,2 | 33 | 53 | 75 | 57 | 67°30' | 100 | - |
| 01311P8 | Black | 3,2 | 41 | 53 | 62 | 56 | 67°30' | 110 | - |
| 01312P8 | Black | 3,2 | 46 | 60 | 69 | 62 | 67°30' | 125 | - |
| 01316P8 | Black | 4 | 60 | 74 | 82 | 74 | 67°30' | 160 | - |
