AM3 - Double adaptor

PVC pressure fittings.

Double adaptor with solvent weld socket, solvent weld spigot and BSP threaded male end.

PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general.

Go back
AM3 - Double adaptor

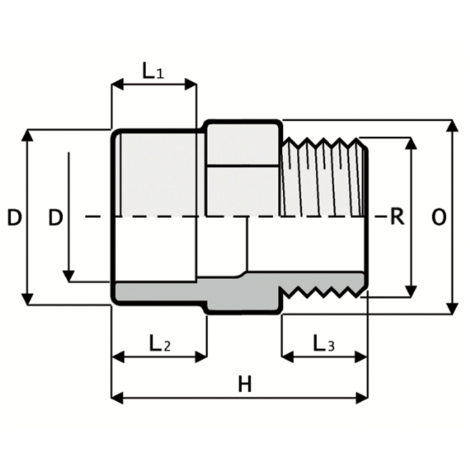

Reference Name Product description product.detail.attribute.technicalFeatures dimensionalTable Main category Subcategory Sub sub category system Category family series Material product.detail.attribute.D x D x R PN L1

L2

L[5:3] H product.detail.attribute.O g product.detail.attribute.EL[5:3]
1RAM311I00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 110 x 125 x 3" 16 61 69 34 120 128 450 -
1RAM311L00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 110 x 125 x 4" 16 61 69 39 126 128 500 -
1RAM316A00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 16 x 20 x 3/8" 16 14 16 11 40 24 10 -
1RAM316B00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 16 x 20 x 1/2" 16 14 16 15 43 24 15 -
1RAM320B00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 20 x 25 x 1/2" 16 16 19 15 46 30 15 -
1RAM320C00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 20 x 25 x 3/4" 16 16 19 16 47 30 20 -
1RAM325B00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 25 x 32 x 1/2" 16 19 22 15 49 36 25 -
1RAM325C00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 25 x 32 x 3/4" 16 19 22 16 50 36 25 -
1RAM325D00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 25 x 32 x 1" 16 19 22 19 53 36 45 -
1RAM332C00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 32 x 40 x 3/4" 16 22 26 16 54 46 40 -
1RAM332D00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 32 x 40 x 1" 16 22 26 - 57 46 40 19
1RAM332E00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 32 x 40 x 1"1/4 16 22 26 - 60 46 55 21
1RAM340D00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 40 x 50 x 1" 16 26 31 - 64 55 70 19
1RAM340E00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 40 x 50 x 1"1/4 16 26 31 - 67 55 70 21
1RAM340F00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 40 x 50 x 1"1/2 16 26 31 - 67 55 70 21
1RAM350E00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 50 x 63 x 1"1/4 16 31 38 21 74 65 70 -
1RAM350F00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 50 x 63 x 1"1/2 16 31 38 - 74 65 115 21
1RAM350G00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 50 x 63 x 2" 16 31 38 - 78 65 125 26
1RAM363F00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 63 x 75 x 1"1/2 16 38 44 21 80 80 198 -
1RAM363G00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 63 x 75 x 2" 16 38 44 26 84 80 160 -
1RAM363H00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 63 x 75 x 2"1/2 16 38 44 30 91 80 195 -
1RAM375G00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 75 x 90 x 2" 16 44 51 26 93 95 275 -
1RAM375H00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 75 x 90 x 2"1/2 16 44 51 30 98 95 280 -
1RAM375I00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 75 x 90 x 3" 16 44 51 34 100 95 300 -
1RAM390H00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 90 x 110 x 2"1/2 16 51 61 30 108 110 370 -
1RAM390I00 AM3 - Double adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 90 x 110 x 3" 16 51 61 34 113 110 390 -
  • Size range:
    • d 16 x 3/8" ÷ d 110 x 4"
  • Nominal pressure:
    • Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6"
    • BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4"
  • Temperature range: 0 °C ÷ 60 °C
  • Reference standards:
    • ISO 7-1, ISO 228-1
  • Fitting material: PVC-U
  • Seal material:
    • Gaskets in EPDM, on request FKM
    • Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430
