AL3 - Adaptor

PVC pressure fittings.

ISO/female threaded adaptor.

PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general.

Go back
AL3 - Adaptor

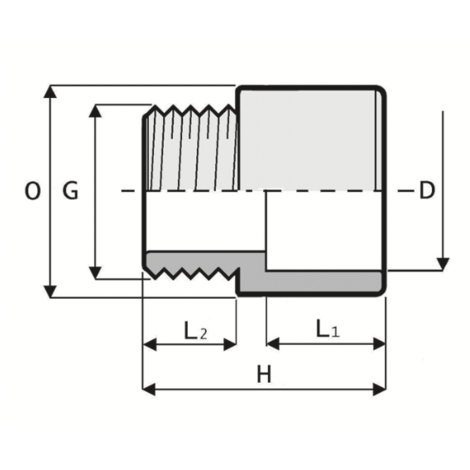

Reference Name Product description product.detail.attribute.technicalFeatures dimensionalTable Main category Subcategory Sub sub category system Category family series Material product.detail.attribute.D x G PN L1

L2

 H product.detail.attribute.O g
1RAL350F00 AL3 - Adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 50 x 1"1/2 16 32 30 67 62 90
1RAL363G00 AL3 - Adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 63 x 2" 16 39 35 80 76 142
1RAL375H00 AL3 - Adaptor PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. Size range:  d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 - PVC-U system Ball valves TKD DN 10÷50 PVC-U system Pressure Fittings Ball valves BSP Fittings PVC-U 75 x 2"1/2 16 44 40 108 95 300
  • Size range:
    • d 16 x 3/8" ÷ d 110 x 4"
  • Nominal pressure:
    • Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6"
    • BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4"
  • Temperature range: 0 °C ÷ 60 °C
  • Reference standards:
    • ISO 7-1, ISO 228-1
  • Fitting material: PVC-U
  • Seal material:
    • Gaskets in EPDM, on request FKM
    • Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430

Downloads

Technical catalogue PVC-U Astore Manual valves
en get_app it get_app
18 MB, PDF
ASTORE Technical Catalogue
Technical catalogue PVC-U Astore Manual valves
