1V724 - Spheric ball valve

True union grey PVC spheric ball valve, ISO metric plain solvent weld socket, with fixed ball support and radial disassembly.
EPDM or FKM seals.
PTFE ball seats.

Astore 724 is a true union ball valve for industrial and water treatment applications, with fixed ball support and radial disassembly, which allow a simple and safe installation and a reliable service over time.

Main features:

Construction: True union grey PVC spheric ball valve, with fixed ball support and radial disassembly
Size range: DN 10 ÷ 100
Nominal pressure:
- DN 10÷50: PN16 with water at 20°C
- DN 65÷100: PN10 with water at 20°C
Temperature range: 0 °C ÷ 60 °C
Coupling standards: Solvent welding: ISO 727, EN ISO 1452-4 (model 1V724)
Valve material: PVC-U
Seal material:
- EPDM, FKM (O-Ring)
- PTFE (ball seats)
Control options: Manual control

Go back Data sheet

EPDM

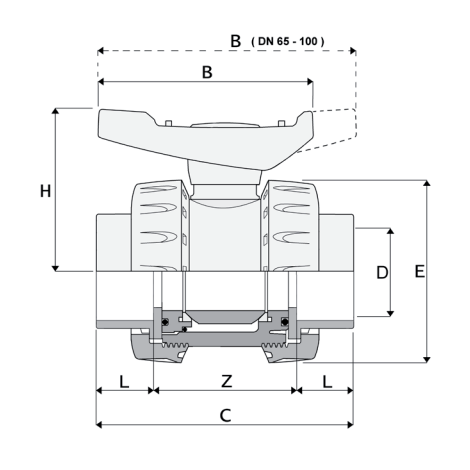

Reference	D	PN	DN	L	Z	C	E	H	B	g
1V72401600	16	16	10	14	54	82	53	51	66	150
1V72402000	20	16	15	16	50	82	53	51	66	145
1V72402500	25	16	20	19	53	91	62	59	77	220
1V72403200	32	16	25	22	59	103	71	66	88	315
1V72404000	40	16	32	26	68	120	84	77	102	505
1V72405000	50	16	40	31	77	139	98	87	117	725
1V72406300	63	16	50	38	98	174	117	105	140	1245
1V72407500	75	10	65	44	142	230	168	138	225	3400
1V72409000	90	10	80	51	142	244	168	138	225	3500
1V72411000	110	10	100	61	162	284	210	171	280	5900

FKM

Reference	D	PN	DN	L	Z	C	E	H	B	g
1V72401610	16	16	10	14	54	82	53	51	66	150
1V72402010	20	16	15	16	50	82	53	51	66	145
1V72402510	25	16	20	19	53	91	62	59	77	220
1V72403210	32	16	25	22	59	103	71	66	88	315
1V72404010	40	16	32	26	68	120	84	77	102	505
1V72405010	50	16	40	31	77	139	98	87	117	725
1V72406310	63	16	50	38	98	174	117	105	140	1245
1V72407510	75	10	65	44	142	230	168	138	225	3400
1V72409010	90	10	80	51	142	244	168	138	225	3500
1V72411010	110	10	100	61	162	284	210	171	280	5900
