Drainage systems with Lareter pipes for the new railway stations and stops along the Kiato-Patras line in Greece

Project: New railway stations and stops for the Kiato–Patras railway line in the Rododafni section- Rio

Loction: Patras, Greece

Products: Lareter PVC pipes Ø400–500 SN4

Year: 2024 - present

Construction of 28.8 km of double-track railway line with new stations, equipped tunnels, and advanced technological systems, including drainage systems with SN4 PVC pipes along the Rododafni–Rio section.

Specifications:

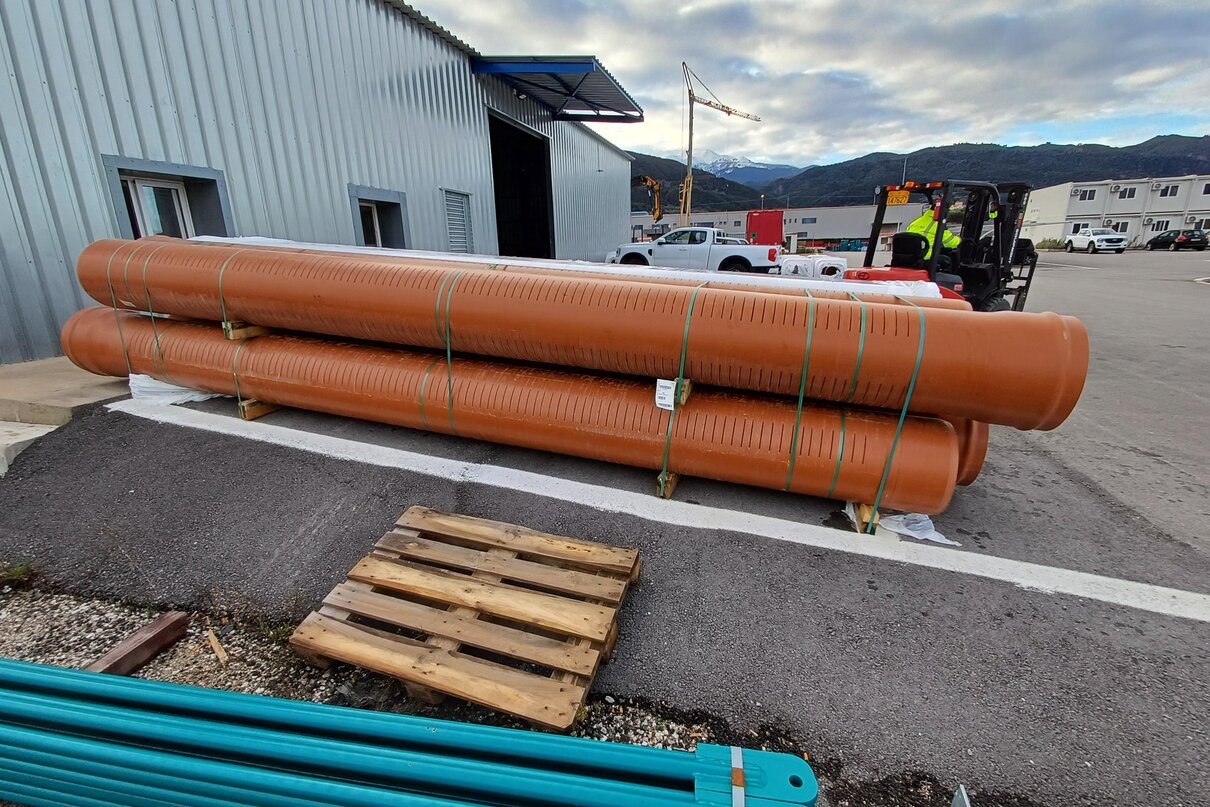

Installation of 1,002 meters of slotted SN4 PVC pipes branded Lareter, intended for the drainage systems of the new railway stations.

Solutions Provided:

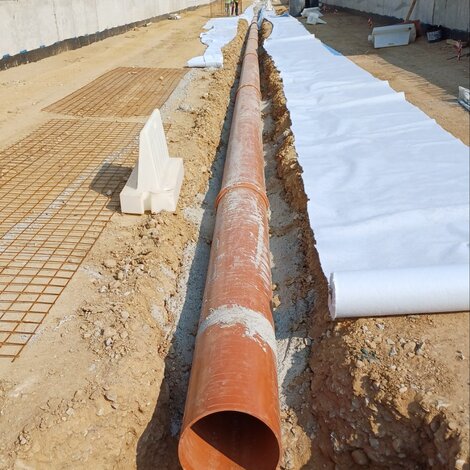

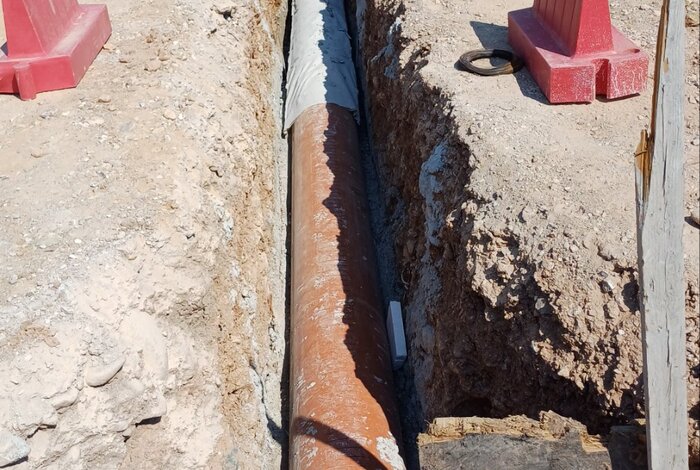

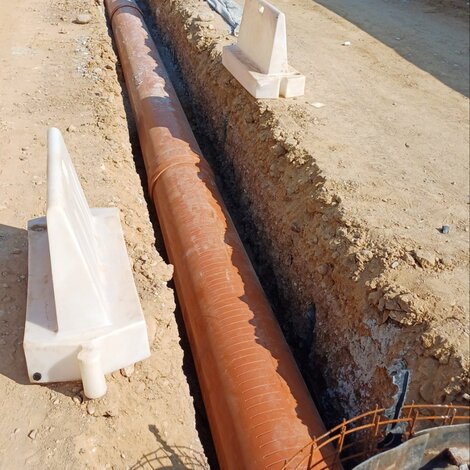

The drainage system involves excavating a trench, laying a concrete bed, and covering it with geotextile fabric.
On top of the fabric, a 3-4 cm layer of gravel is distributed, which facilitates sediment filtration and accelerates water flow toward the slotted SN4 PVC pipes by Lareter.
The collected water is then directed into drainage manholes connected to larger-diameter main collectors.

Advantages:

The choice of piping was driven by the technical specifications of the project, which required high-strength materials with thick walls.
Lareter was selected for the reliability of its jointing system with the integrated Forsheda gasket, embedded in the pipe socket during the thermoforming process. This system ensures:

• Permanent hydraulic sealing, compliant with UNI EN 681 standards;
• Dimensional precision of joints, with reduced tolerances;
• Simplified installation operations, thanks to the stability of the gasket and the elimination of manual.
