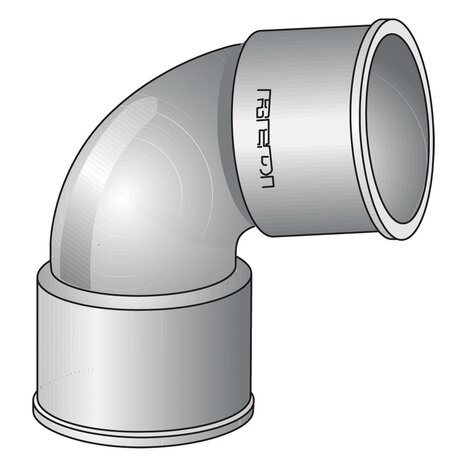

Bend Double Socket 87°30’ F/F
PVC-U Soil & Waste System
- EN 1329 Solvent Welded PVC-U Fittings
- B s2 d0 Fire Reaction Euroclass
- Color: RAL 7037 Grey

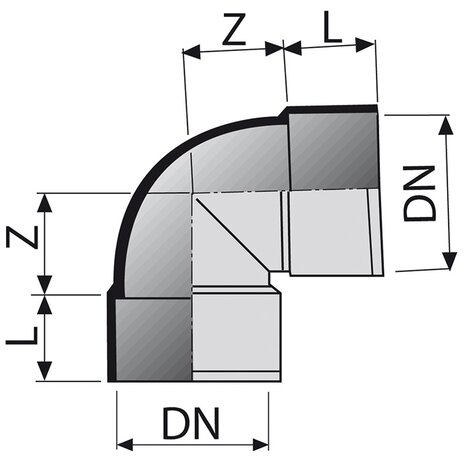

| Reference | Z (mm) | L (mm) | DN (mm) | Version |
|---|---|---|---|---|
| 024030M | 25 | 23 | 32 | - |
| 024040M | 31 | 27 | 40 | - |
| 024050M | 39 | 32 | 50 | - |
| 024060M | 48 | 39 | 63 | - |
| 024070M | 58 | 44,5 | 75 | - |
| 024080M | 61 | 47 | 80 | - |
| 024100M | 77 | 57 | 100 | - |
| 0241302 | 65 | 61 | 110 | - |
| 024110M | 245 | 62 | 110 | Long radius |
| 024120M | 101 | 60 | 125 | - |
| E24140M | 83 | 61 | 140 | - |
| 024160M | 124 | 60 | 160 | - |
| 024200M | 153 | 60 | 200 | - |
| 0242502 | 155 | 103 | 250 | - |
| 0243002 | 192 | 120 | 315 | - |
