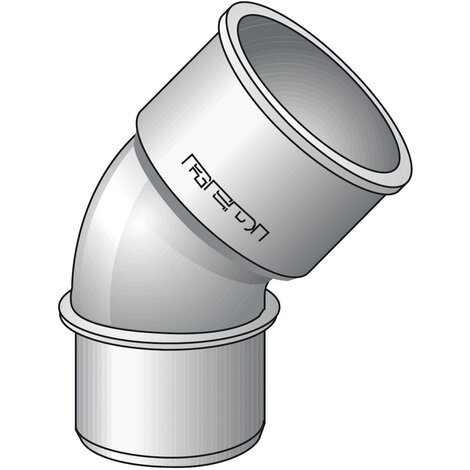

Bend 45° M/F
PVC-U Soil & Waste System
- EN 1329 Solvent Welded PVC-U Fittings
- B s2 d0 Fire Reaction Euroclass
- Color: RAL 7037 Grey

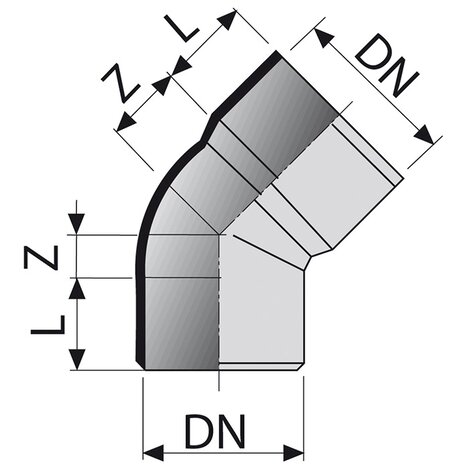

| Part no. | Z (mm) | L (mm) | DN (mm) | Version |
|---|---|---|---|---|
| 073030M | 11 | 23 | 32 | - |
| 073040M | 13 | 27 | 40 | - |
| 073050M | 17 | 32 | 50 | - |
| 070060M | 22 | 39 | 63 | - |
| 073070M | 25 | 44,5 | 75 | - |
| 073080M | 26,5 | 47 | 80 | - |
| 073100M | 33 | 53 | 100 | - |
| 073110M | 38 | 56 | 110 | - |
| 073120M | 41 | 61 | 125 | - |
| 0121402 | 47 | 61 | 140 | - |
| 0701602 | 50 | 72 | 160 | - |
| 0702002 | 65 | 85 | 200 | - |
| 0122502 | 79 | 101 | 250 | - |
| 0123002 | 100 | 116 | 315 | - |
| 0124002 | 125 | 155 | 400 | - |
| 0125002 | 160 | 150 | 500 | upon request |
