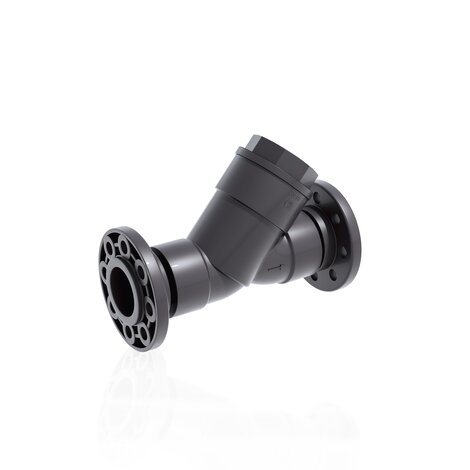

VROV D 75 ÷ 110 - Check valve DN 10:100
Check valve with PVC-U backing ring, drilled PN10/16.
The VR is an angle seat check valve with weighted PVC piston that allows the passage of fluid in one direction only.
| Codice | d | DN | PN | A max | B | F | f | H | Fig. | g |
|---|---|---|---|---|---|---|---|---|---|---|
| VROV075E | 75 | 65 | 10 | 300 | 179 | 145 | 17 | 356 | B | 4600 |
| VROV090E | 90 | 80 | 6 | 325 | 192 | 160 | 17 | 404 | B | 6300 |
| VROV110E | 110 | 100 | 6 | 385 | 231 | 180 | 17 | 475 | C | 9200 |
| Codice | d | DN | PN | A max | B | F | f | H | Fig. | g |
|---|---|---|---|---|---|---|---|---|---|---|
| VROV075F | 75 | 65 | 10 | 300 | 179 | 145 | 17 | 356 | B | 4600 |
| VROV090F | 90 | 80 | 6 | 325 | 192 | 160 | 17 | 404 | B | 6300 |
| VROV110F | 110 | 100 | 6 | 385 | 231 | 180 | 17 | 475 | C | 9200 |
- Connection system for solvent weld, threaded and flanged joints
- No metal parts in contact with the fluid
- Piston with counterweight able to work with high intensity fluid
- Limited pressure drop. Only minimum back pressure is required for the hermetic seal
- Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
