PO1 - Hose adaptor
PVC pressure fittings.
Hose adaptor with solvent weld spigot.
PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general.

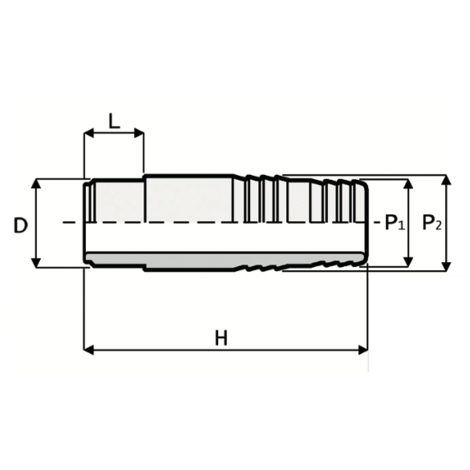

| Codice | Prodotto | product.detail.attribute.IntroTextProduct | product.detail.attribute.technicalFeatures | product.detail.attribute.dimensionalTable | product.detail.attribute.mainCategory | product.detail.attribute.subCategory | product.detail.attribute.subSubCategory | product.detail.attribute.category | product.detail.attribute.family | Serie | Materiale | product.detail.attribute.DxP1xP2 | PN | L | H | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1RPO116000 | PO1 - Hose adaptor | PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. | Size range: d 12 ÷ d 315 mm Nominal pressure: PN 16 with water at 20 °C up to d 160 mm, PN 10 from d 180 to d 315 Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 727, EN ISO 1452-3, EN ISO 15493, BS 4346-1, UNI EN 10226-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 | - | PVC-U system | Ball valves | TKD DN 10÷50 | Manual valves | ISO-UNI Fittings | Special parts | PVC-U | 16 x 18 x 16 | 16 | 14 | 60 | 12 |
| 1RPO120000 | PO1 - Hose adaptor | PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. | Size range: d 12 ÷ d 315 mm Nominal pressure: PN 16 with water at 20 °C up to d 160 mm, PN 10 from d 180 to d 315 Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 727, EN ISO 1452-3, EN ISO 15493, BS 4346-1, UNI EN 10226-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 | - | PVC-U system | Ball valves | TKD DN 10÷50 | Manual valves | ISO-UNI Fittings | Special parts | PVC-U | 20 x 22 x 20 | 16 | 16 | 67 | 17 |
| 1RPO125000 | PO1 - Hose adaptor | PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. | Size range: d 12 ÷ d 315 mm Nominal pressure: PN 16 with water at 20 °C up to d 160 mm, PN 10 from d 180 to d 315 Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 727, EN ISO 1452-3, EN ISO 15493, BS 4346-1, UNI EN 10226-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 | - | PVC-U system | Ball valves | TKD DN 10÷50 | Manual valves | ISO-UNI Fittings | Special parts | PVC-U | 25 x 27 x 25 | 16 | 19 | 81 | 26 |
| 1RPO132000 | PO1 - Hose adaptor | PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. | Size range: d 12 ÷ d 315 mm Nominal pressure: PN 16 with water at 20 °C up to d 160 mm, PN 10 from d 180 to d 315 Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 727, EN ISO 1452-3, EN ISO 15493, BS 4346-1, UNI EN 10226-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 | - | PVC-U system | Ball valves | TKD DN 10÷50 | Manual valves | ISO-UNI Fittings | Special parts | PVC-U | 32 x 32 x 30 | 16 | 22 | 97 | 40 |
| 1RPO140000 | PO1 - Hose adaptor | PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. | Size range: d 12 ÷ d 315 mm Nominal pressure: PN 16 with water at 20 °C up to d 160 mm, PN 10 from d 180 to d 315 Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 727, EN ISO 1452-3, EN ISO 15493, BS 4346-1, UNI EN 10226-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 | - | PVC-U system | Ball valves | TKD DN 10÷50 | Manual valves | ISO-UNI Fittings | Special parts | PVC-U | 40 x 42 x 40 | 16 | 26 | 104 | 78 |
| 1RPO150000 | PO1 - Hose adaptor | PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. | Size range: d 12 ÷ d 315 mm Nominal pressure: PN 16 with water at 20 °C up to d 160 mm, PN 10 from d 180 to d 315 Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 727, EN ISO 1452-3, EN ISO 15493, BS 4346-1, UNI EN 10226-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 | - | PVC-U system | Ball valves | TKD DN 10÷50 | Manual valves | ISO-UNI Fittings | Special parts | PVC-U | 50 x 52 x 50 | 16 | 31 | 111 | 113 |
| 1RPO163000 | PO1 - Hose adaptor | PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. | Size range: d 12 ÷ d 315 mm Nominal pressure: PN 16 with water at 20 °C up to d 160 mm, PN 10 from d 180 to d 315 Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 727, EN ISO 1452-3, EN ISO 15493, BS 4346-1, UNI EN 10226-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 | - | PVC-U system | Ball valves | TKD DN 10÷50 | Manual valves | ISO-UNI Fittings | Special parts | PVC-U | 63 x 64 x 60 | 16 | 38 | 123 | 170 |
- Size range:
-
- d 12 ÷ d 315 mm
- Nominal pressure:
- PN 16 with water at 20 °C up to d 160 mm, PN 10 from d 180 to d 315
- Temperature range: 0 °C ÷ 60 °C
- Reference standards:
- ISO 727, EN ISO 1452-3, EN ISO 15493, BS 4346-1, UNI EN 10226-1
- Fitting material: PVC-U
- Seal material:
- Gaskets in EPDM, on request FKM
- Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430
