CA1 - End cap
PVC pressure fittings.
End cap with solvent weld socket.
PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general.

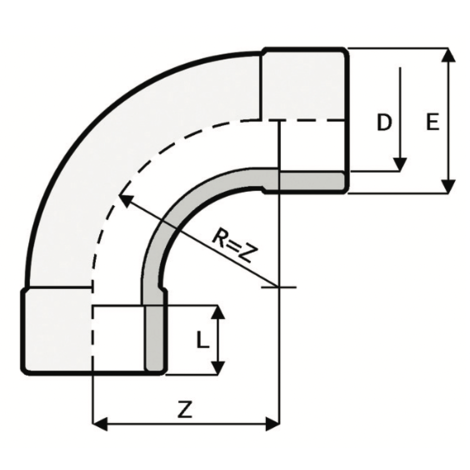

| Codice | D | PN | L | Z | E | g |
|---|---|---|---|---|---|---|
| 1RCU120000 | 20 | 16 | 16 | 40 | 27 | 35 |
| 1RCU125000 | 25 | 16 | 19 | 50 | 33 | 56 |
| 1RCU132000 | 32 | 16 | 22 | 65 | 41 | 96 |
| 1RCU140000 | 40 | 16 | 26 | 80 | 50 | 170 |
| 1RCU150000 | 50 | 16 | 31 | 100 | 61 | 310 |
| 1RCU163000 | 63 | 16 | 38 | 126 | 77 | 510 |
| 1RCU175000 | 75 | 16 | 44 | 150 | 94 | 995 |
| 1RCU190000 | 90 | 16 | 51 | 180 | 113 | 1765 |
- Size range:
-
- d 12 ÷ d 315 mm
- Nominal pressure:
- PN 16 with water at 20 °C up to d 160 mm, PN 10 from d 180 to d 315
- Temperature range: 0 °C ÷ 60 °C
- Reference standards:
- ISO 727, EN ISO 1452-3, EN ISO 15493, BS 4346-1, UNI EN 10226-1
- Fitting material: PVC-U
- Seal material:
- Gaskets in EPDM, on request FKM
- Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430
