BIO TOP MAXI, IMHOFF tank
Pre-treatment of urban effluents
What differentiates Imhoff tanks from septic tanks is the presence of two clearly separate processes of settling and digestion of the sludge.

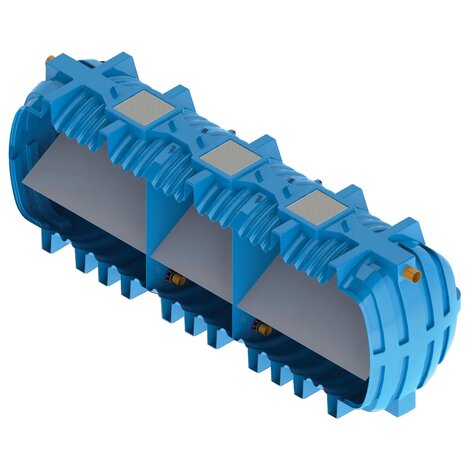

Imhoff Bio Top Maxi tanks are made by polyethylene with ribbed structure.
Bio Top Maxi tank is featured with 2 compartments (settling chamber and a sludge digestion chamber), forming a one piece construction.
Treatment performace:
- DBOS reduction = 40%
- MLSS reduction = 60%
- COMPLIANCE WITH STANDARD 91/27/CE
| Note : | The tank is supplied ready for installation |

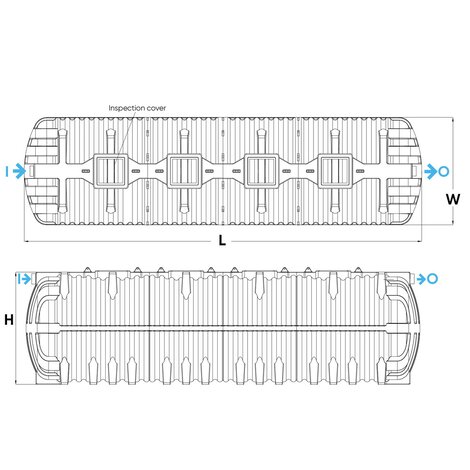

| Codice | Altezza H (cm) | L (cm) | Chiusini 500x500 (mm) | Articolo | Utenti (A.E.) |
|---|---|---|---|---|---|
| IS00700 | H= 228 / W= 214 | 494 | 2 | BIO MAXI 16000 | 80 |
| IS00701 | H= 228 / W= 214 | 646 | 3 | BIO MAXI 21000 | 100 |
| IS00702 | H= 228 / W= 214 | 798 | 4 | BIO MAXI 26000 | 130 |
| IS00703 | H= 228 / W= 214 | 950 | 5 | TANK 21000 M | 150 |
| IS00704 | H= 228 / W= 214 | 1102 | 6 | BIO MAXI 36000 | 180 |
| IS00705 | H= 228 / W= 214 | 1254 | 7 | BIO MAXI 41000 | 200 |
Download
8.2 MB,
PDF
Technical Handbook
