Bend 15° M/F
PHONOBLACK Soundproof PVC-U Soil & Waste System
Push-Fit PVC-U Pipe and Fittings
13 dB - 2 l/s Acoustic Performance
B s1 d0 Fire Reaction Euroclass
Thermoplastic mineral-reinforced material PVC-U
Ring jointed sockets fitted with certified elastomeric liprings
Color: RAL 9005 - Black
| Codice | Colore | S (mm) | Z1 (mm) | Z2 (mm) | L1 (mm) | L2 (mm) | α | DN (mm) | Versione |
|---|---|---|---|---|---|---|---|---|---|
| 01004P8 | Black | 3 | 3 | 27 | 48 | 41 | 15° | 40 | - |
| 01005P8 | Black | 3 | 4 | 17 | 53 | 45 | 15° | 50 | - |
| 01007P8 | Black | 3 | 5 | 18 | 50 | 45 | 15° | 75 | - |
| 01009P8 | Black | 5,1 | 11 | 14 | 59 | 55,7 | 15° | 90 | High thicknes |
| 01011P8 | Black | 3,2 | 9 | 22 | 62 | 57 | 15° | 110 | - |
| 01012P8 | Black | 3.2 | 10 | 22 | 68 | 63 | 15° | 40 | - |
| 01016P8 | Black | 4 | 14 | 28 | 82 | 72 | 15° | 160 | - |
Certificati
Download
2 MB,
PDF
get_app
REDI Export Catalogue
2.7 MB,
ZIP
DWG AUTOCAD
2.1 MB,
ZIP
DWG AUTOCAD
2.3 MB,
ZIP
DWG AUTOCAD
375.9 KB,
PDF

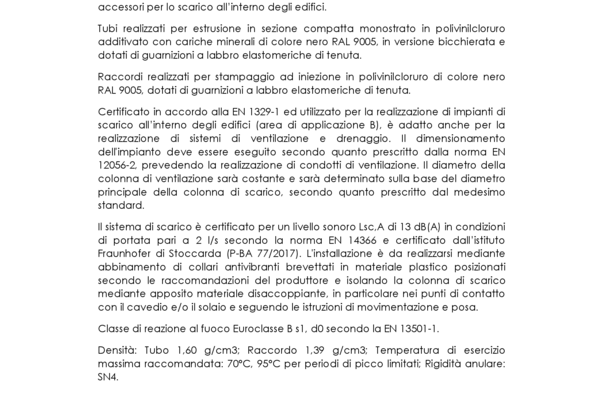

Technical Datasheet
