AAV - primary ventilation (universal, diameter range: Ø75 ÷ Ø114)
Products for ventilation of the waste system. The use of ventilation valves allows air to enter, decreasing depressurization during discharge and that cause siphons to empty, while blocking pungent fumes from escaping.
Good design of a ventilation system allows:
- increase of discharge capacity
- reduction of noise generated during discharge
- thorough emptying of the system.
Norms: EN 12056 Air admittance valve systems, EN 12380 Air admittance valves
EN 12380Airflow rate: 14 l/s. Air tightness tested at: 10 Kpa. Temperature range: da 0°C a 60°C. Effectiveness at low temperature (below zero): NPD
| Note : | Available in single package, also including universal gasket. Adaptor required: Ø84÷95; Ø94÷104; Ø104÷110. For the kitchen, Ø75 can be directly inserted. |
| Codice | Colore | S (mm) | S1 (mm) | Dim (mm) | Ød (mm) |
|---|---|---|---|---|---|

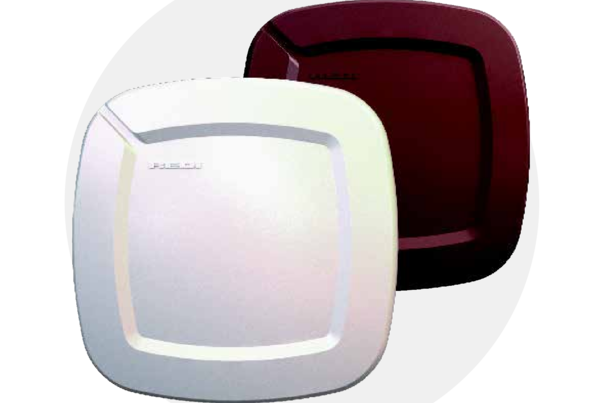

| 169000W | White | 20 | 12,8 | 146,6 x 146,6 | 75 |
| 1690007 | Dark brown | 20 | 12,8 | 146,6 x 146,7 | 75 |
